NetMetal 5 Dual chain 5GHz integrated 802.11a/n/ac AP/Backbone/CPE with an additional miniPCI-e slot, 2xRPSMA connectors, Gigabit Ethernet, waterproof metal enclosure
This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas

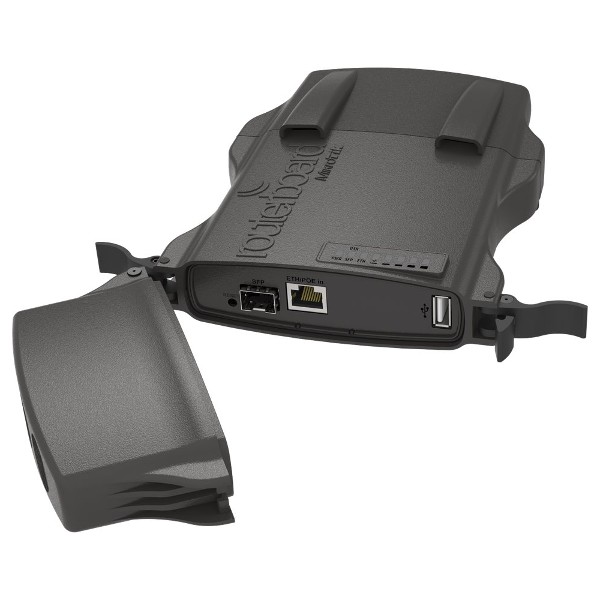

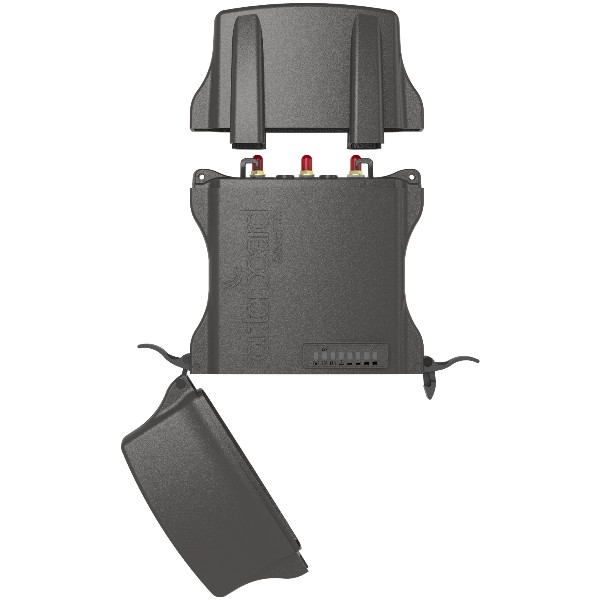

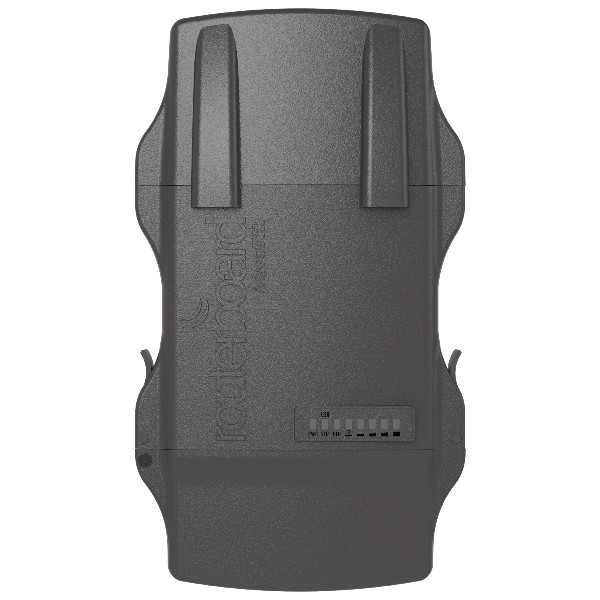

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure (IP54). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand.
The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.
The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
|
Specifications |
|
Product code |
RB922UAGS-5HPacD-NM |
|
Architecture |
MIPSBE |
|
CPU |
QCA9557 |
|
CPU core count |
1 |
|
CPU nominal frequency |
720 MHz |
|
Dimensions |
143x247x48mm (PCB) |
|
RouterOS license |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
128 MB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF (Approximately) |
200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
19 W |
|
Cooling type |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
8-30 V |
|
Wireless specifications
|
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Wireless 5 GHz chip model |
QCA9882 |
|
Wireless 5 GHz generation |
Wi-Fi 5 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
SFP DDMI |
yes |
|
SFP ports |
1 |
|
Peripherals |
|
Number of SIM slots |
1 Modem (Mini SIM) |
|
MiniPCI-e slots |
1 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
