UACC-Adapter-PoE-24-12W - PoE Adapter, 24V DC, 12W, 2.5 GbE
A 12W PoE adapter with 2.5 GbE connectivity
The UACC-Adapter-PoE-24-12W (24V/0.5A) features earth grounding/ESD protection, power LED, and is available in the EU (CEE 7/16) Version.
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
2-Pair |
B |
4,5 |
7,8 |
|
Specifications: |
|
Output Voltage |
24V |
|
Output Current |
0.5A |
|
Total Output Power |
12W |
|
Efficiency |
82.96% |
|
Input Voltage Range |
100–240V AC (50/60Hz) |
|
Networking & Interface |
|
Networking Interface |
Gigabit RJ45 Shielded Socket |
|
2-pair Powering |
Pins 4, 5 (+) and Pins 7, 8 (-) |
|
AC Connector |
IEC-320 C6 |
|
Protection & Reliability |
|
Surge Protection |
Difference and Common mode |
|
ESD/EMP Protection |
6KV Contact / 10KV Air |
|
Max. Surge Discharge |
1500A (8/20 µs) power |
|
Remote Reset Capability |
Supported |
|
Mechanical & Environmental |
|
Dimensions |
89 x 46 x 33 mm |
|
Weight |
100 g |
|
Operating Temperature |
0 to 40° C |
|
Compliance |
|
Certifications |
CE, FCC, IC, UL, PSE, BSMI |
|
NDAA Compliant |
✓ |

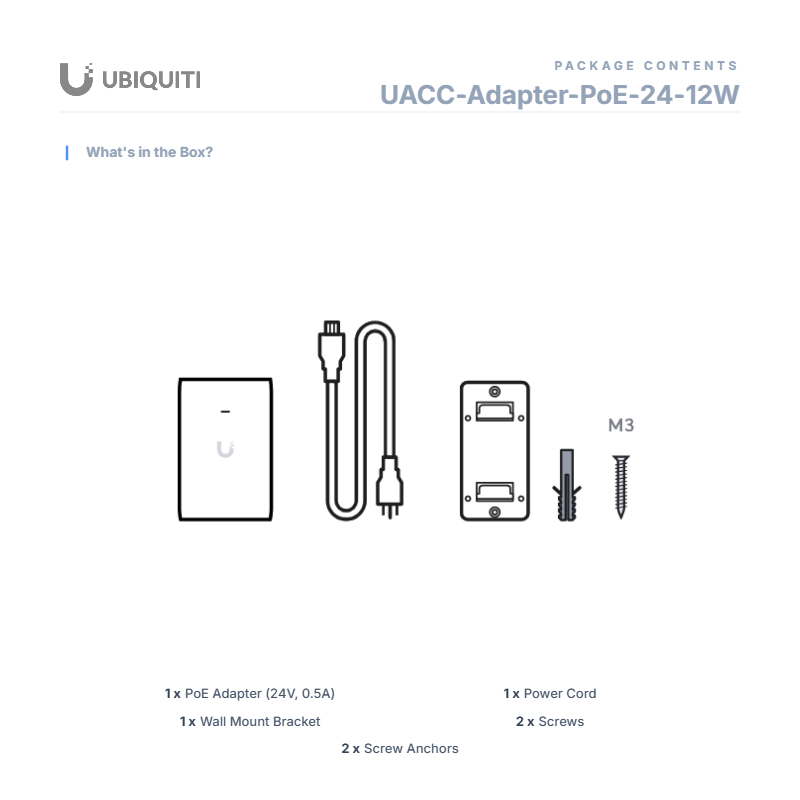

| Package Contents: |
|---|
| 1 x PoE Adapter (24V, 0.5A)
|
| 1 x Power Cord
|
| 1 x Wall Mount Bracket
|
| 2 x Screws
|
| 2 x Screw Anchors |
|
