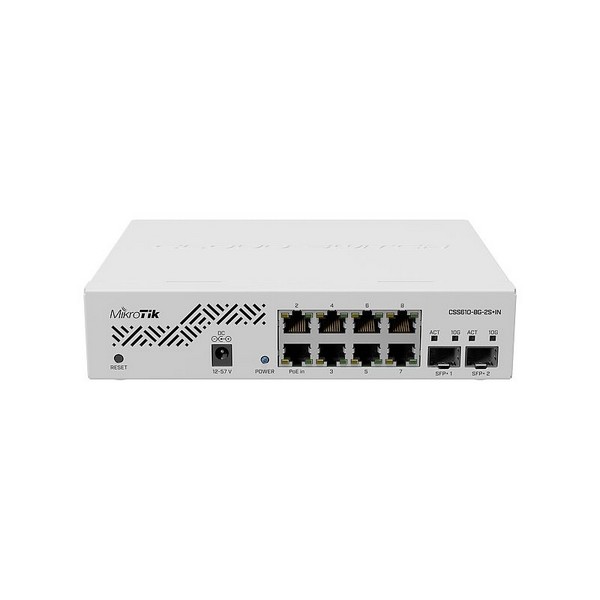

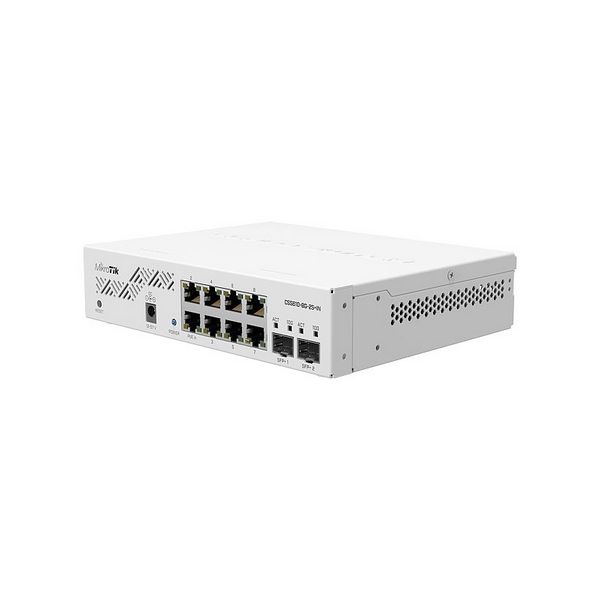

CSS610-8G-2S+IN - Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity.
Portable, powerful and extremely cost-effective – this switch is an instant classic!
Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
|
Specifications: |
|
Product code |
CSS610-8G-2S+IN |
|
Dimensions |
200 x 167 x 46 mm |
|
Operating System |
SwitchOS |
|
Storage size |
64 KB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-20°C to 60°C |
|
Powering |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
12-57 V |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-57 V |
|
Max power consumption |
11 W |
|
Max power consumption without attachments |
5 W |
|
FAN count |
Passive |
|
Ethernet |
|
10/100/1000 Ethernet ports |
8 |
|
Fiber |
|
SFP+ ports |
2 |
|
Certification & Approvals |
|
Certification |
CE, EAC, ROHS |
