CRS320-8P-8B-4S+RM - The first MikroTik high-power PoE++ switch, for easy and cost-effective powering of industry standard 802.3af/at/bt devices.
The Cloud Router Switch CRS320-8P-8B-4S+RM is a PoE switch supporting the 802.3af/at and 802.3bt standards with a total PoE budget of 600 W (up to 1150 W with an additional power supply).
The switch offers 17 Gigabit LAN ports, the first eight supports 802.3af/at PoE (maximum 30 W/port), the next eight supports 802.3af/at/bt (maximum 90 W/port), and it also includes 4 10 Gigabit SFP+ ports.

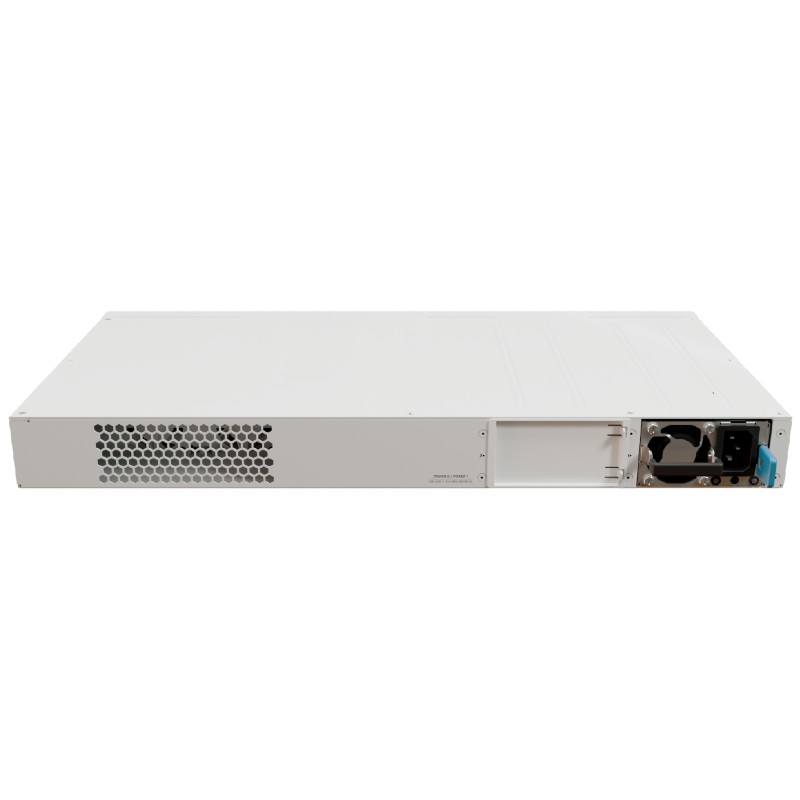

It is powered by a Hot-swap power supply with a capacity of 600 W, with the option to purchase a second power supply to increase the total power capacity to 1150 W, but not for redundancy.
The maximum device consumption is 36 W.
Features :
-
17x 10/100/1000 Mbps LAN
-
4x SFP+ (10 Gbps)
-
8x 802.3af/at (30 W/port) + 8x 802.3af/at/bt (90 W/port)
-
PoE budget of 600 W - expandable up to 1150 W
-
1x Hot-Swap power supply, 1x free slot for expanding the total PoE capacity
-
Console RJ45 port
-
Operating system RouterOS v7 Level 5
|
Specifications |
|
Product code |
CRS320-8P-8B-4S+RM |
|
Architecture |
ARM 32bit |
|
CPU |
98DX226S |
|
CPU core count |
2 |
|
CPU nominal frequency |
800 MHz |
|
Switch chip model |
98DX226S |
|
RouterOS license |
5 |
|
Operating System |
RouterOS v7 / SwitchOS |
|
Size of RAM |
256 MB |
|
Storage size |
32 MB |
|
Storage type |
FLASH |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-10°C to 50°C |
|
Powering
|
|
Number of AC inputs |
1 |
|
AC input range |
100-240 |
|
Number of PSU slots |
2 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
600W (1150W with additional PSU) |
|
Max power consumption without attachments |
36 W |
|
Cooling type |
3 fans |
|
PoE-out |
|
PoE-out ports |
Ether1-Ether8 (af/at)
Ether9-Ether16 (bt) |
|
PoE out |
802.3af/at/bt |
|
Max out per port output (input 30-57 V) |
560 (af/at) / 1667 (bt) mA |
|
Max total out (A) |
17.82 A |
|
Total output current |
17.82 |
|
Total output power |
963 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
17 |
|
Number of 1G Ethernet ports with PoE-out |
16 |
|
Fiber |
|
SFP+ ports |
4 |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Other |
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |

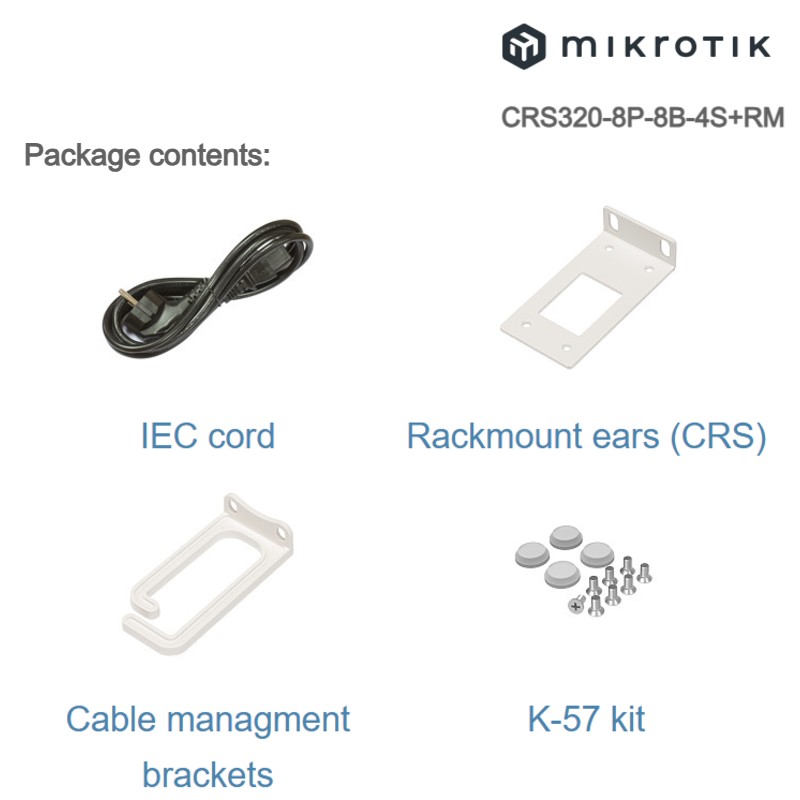

| Package Contents: |
|---|
| 1 x CRS320-8P-8B-4S+RM
|
| 1 x Power cord
|
| 1 x K-57 screw kit
|
| 1 x Rackmount Ears
|
| 1 x Cable managment brackets |
|
