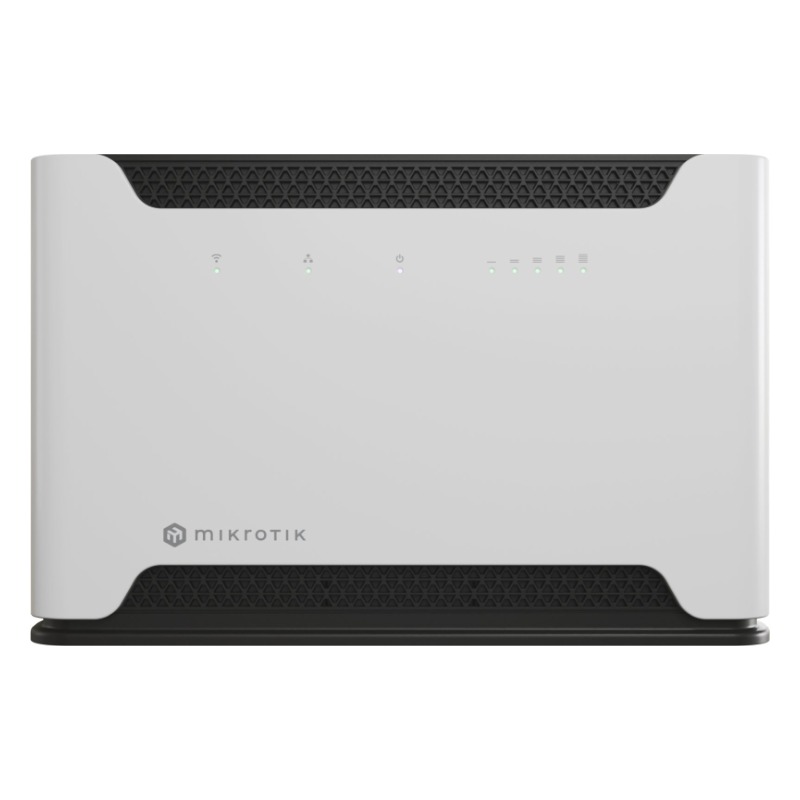

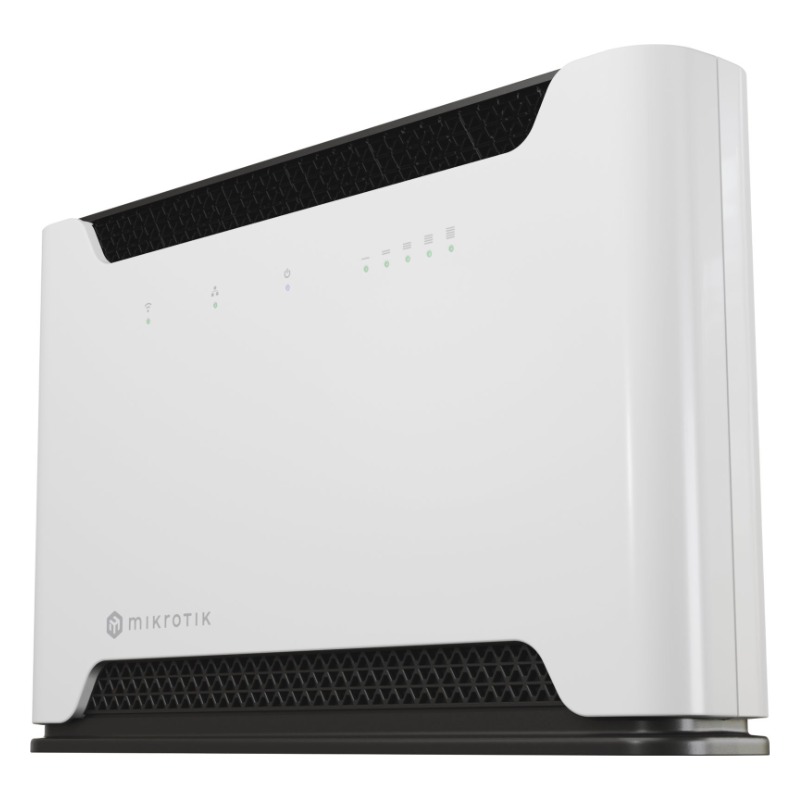

D53G-5HacD2HnD-TC&R11e-LTE7 - MikroTik Chateau LTE7 is a high-performance home and office router that combines elegant design with powerful hardware.
Equipped with a quad-core IPQ-4019 CPU (448–896 MHz) and 256 MB DDR3L RAM, it easily handles demanding networking, security, and management tasks.
The integrated R11e-LTE7 modem (LTE Category 7) delivers download speeds up to 300 Mbps and upload speeds up to 100 Mbps, offering fast, stable internet even in areas with weaker signals.
Dual-band Wi-Fi provides simultaneous 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n/ac connectivity, supported by high-gain internal antennas (2 dBi / 4 dBi).

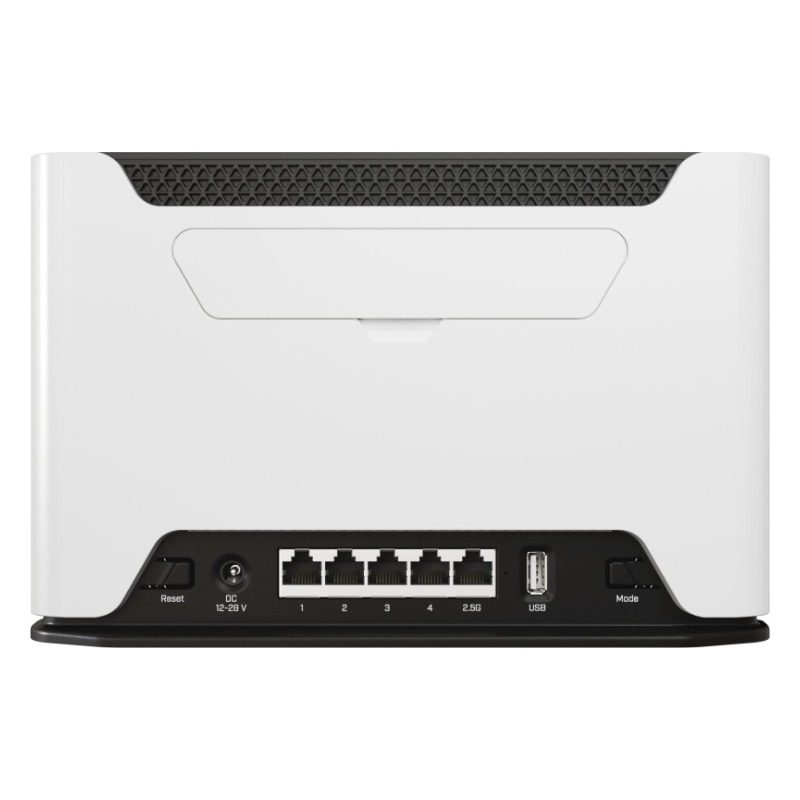

With five Gigabit Ethernet ports and a USB 2.0 Type-A port, Chateau LTE7 supports versatile wired and wireless configurations.
|
Specifications: |
|
Chipset |
Quad-Core IPQ-4019 (448-896 MHz auto) |
|
RAM / Storage Memory |
256 MB / 16 MB |
|
Software |
MikroTik RouterOS Level 4 |
|
Mobile Network |
|
Network Generation |
3G (UMTS), 4G (LTE) |
|
LTE Category |
Cat7 - 300Mbps (Downlink) / 100Mbps (Uplink) |
|
MIMO |
2x2 |
|
FDD LTE Frequency Bands |
1, 3, 5, 7, 8, 20, 28 (2100, 1800, 850, 2600, 900, 800, 700 MHz) |
|
TDD LTE Frequency Bands |
38, 40, 41 (2600, 2300, 2500 MHz) |
|
Wireless Network (Wi-Fi) |
|
Standards |
802.11b/g/n, 802.11a/n/ac |
|
Frequency |
2.4GHz, 5GHz |
|
Antenna Design |
Omni |
|
Interfaces & Power |
|
RJ45 Ports |
(5) 1 Gbps |
|
USB Ports |
(1) USB-A 2.0 |
|
Management |
Ethernet |
|
Power Method |
AC/DC Adapter |
|
Supported Input Voltage |
12 - 28 V DC |
|
Max Power Consumption |
21 W |
|
Power Connector |
DC Plug 2.1 x 5.5 mm |
|
PSU / POE adapter (Included) |
24 V DC 1.2 A |
|
Physical Parameters |
|
Dimensions |
240 x 156 x 44 mm |
|
Form Factor |
Desktop |
|
Mounting Method |
Tabletop |
|
Operating Temperature |
-40 °C to 70 °C |
|
Environment |
Indoor |

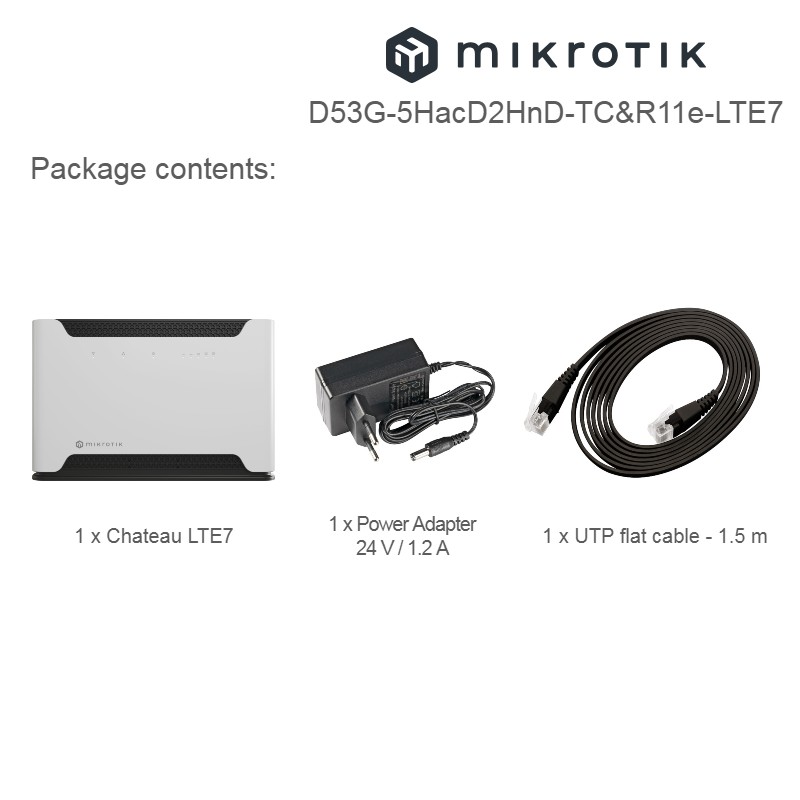

| Package Contents: |
|---|
| 1 x Chateau LTE7
|
| 1 x 24V 1.2A power adapter
|
| 1 x UTP Flat Cable (1.5m) |
|
