Aerial.net :: MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2, wAP LR2 kit

MikroTik » IoT products » RBwAPR-2nD&R11e-LR2

MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2, wAP LR2 kit
[3340][RBwAPR-2nD&R11e-LR2]

Price: 108,15€

Order or Qty		Price
> 500€	5+	107,07€
> 1000€	10+	105,99€
> 2000€	20+	104,91€
> 5000€	40+	103,83€
> 10000€	100+	102,75€

Prices exclude VAT

In Stock: 2

Order Qty:

EAN:	4752224007421

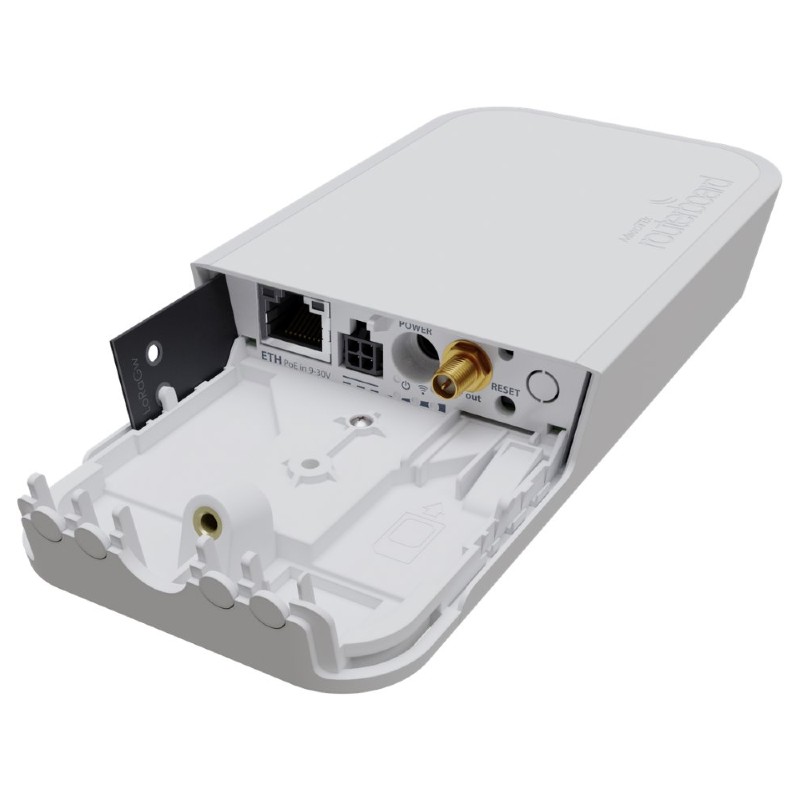

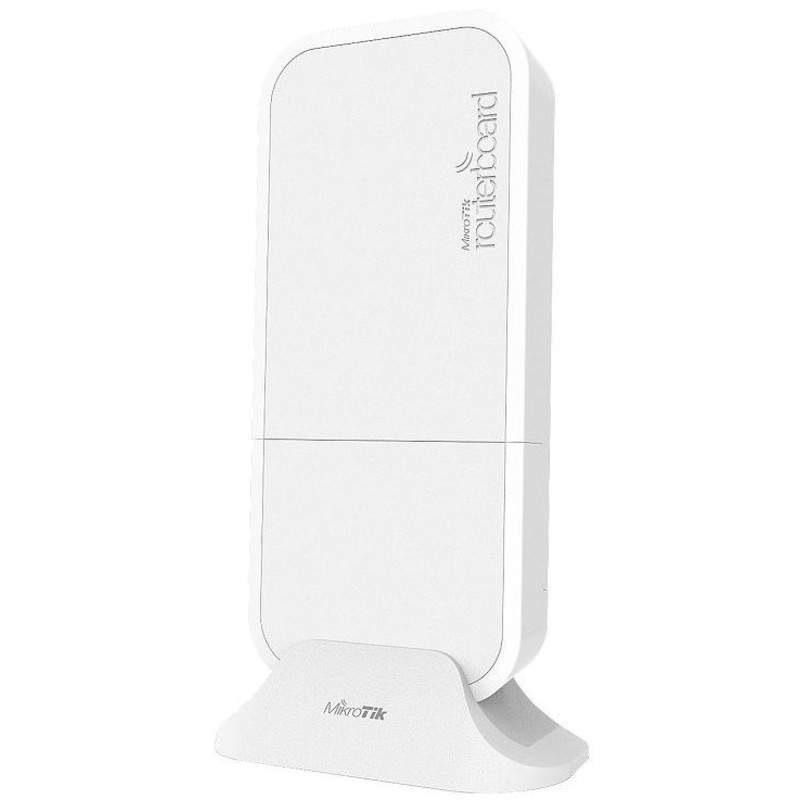

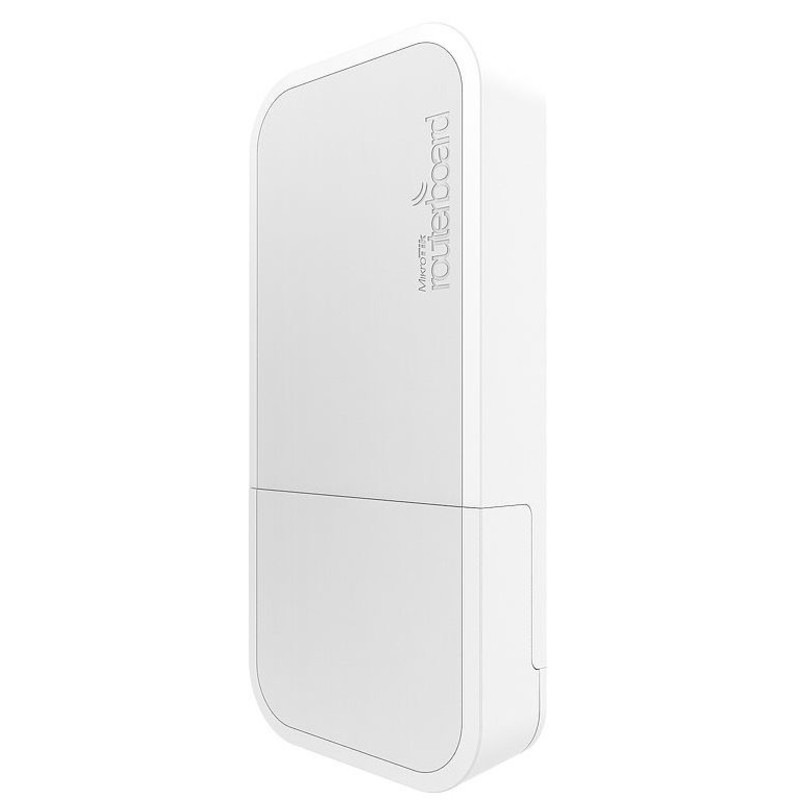

wAP LR2 kit - Our newest out-of-the-box solution for LoRa® technology. Works with the 2.4 GHz frequency for LoRa®. Doesn’t interfere with the 2.4 GHz WLAN signal!

Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.

Here’s the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn’t interfere with the 2.4 GHz WLAN signal!

A perfect solution for industrial setups with a high density of sensors.

There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage.

We suggest using the TOF-2400-8V-4 Omni antenna for best results.

Product Links:
Product Page	Quick Guide	Brochure	User Manual

Specifications
Product code	RBwAPR-2nD&R11e-LR2
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
RouterOS license	4
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 60°C
Powering
Number of DC inputs	3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage	9-30 V
Automotive input Voltage	9-30 V
Max power consumption	8 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	9-30 V
Wireless specifications
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Ethernet
10/100 Ethernet ports	1
Peripherals
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
