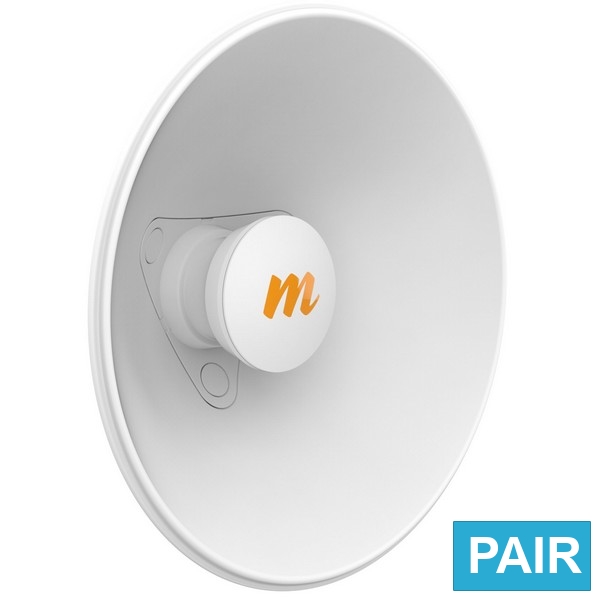

N5-X20 is parabolic directional antenna with gain 20dBi and beamwidth angle 12° for use with C5x units. C5x is connected with antenna by Twist-on connector which eliminates loss on VF cables and connectors.
Antenna is Dual-Slant, polarizations are turn over by 45°. The are 2pcs in package!
Technical parameters
|
Specifications: |
|
Connectors and Interfaces |
|
RF connectors: |
Twist-on port (Mimosa) |
|
Physical characteristics |
|
Wind load [km/h]: |
200 |
|
Purpose: |
Outdoor |
|
Weight [kg]: |
0,8 |
|
Depth [mm]: |
83 |
|
Width [mm]: |
270 |
|
Height [mm]: |
270 |
|
Wireless features |
|
MIMO, SISO: |
2 x 2 (slant - 45° turned) |
|
Polarization: |
VH (slant) |
|
Wireless frequency: |
5 GHz |
|

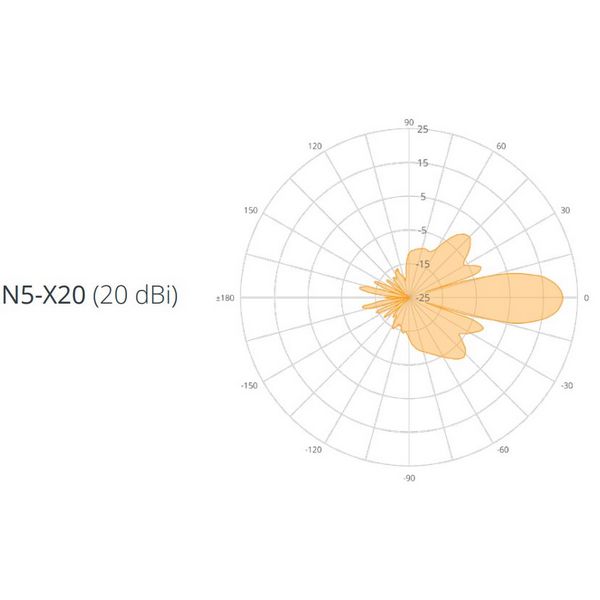

Azimuth beam width (-6dB) [°]: |
12, 12 |
|
Antenna kind: |
Directional |
|

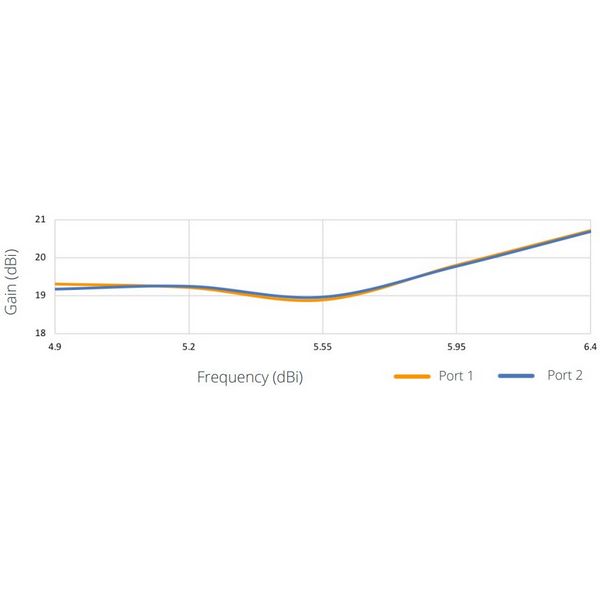

Antenna gain [dBi]: |
20 |
