UD-TP-24

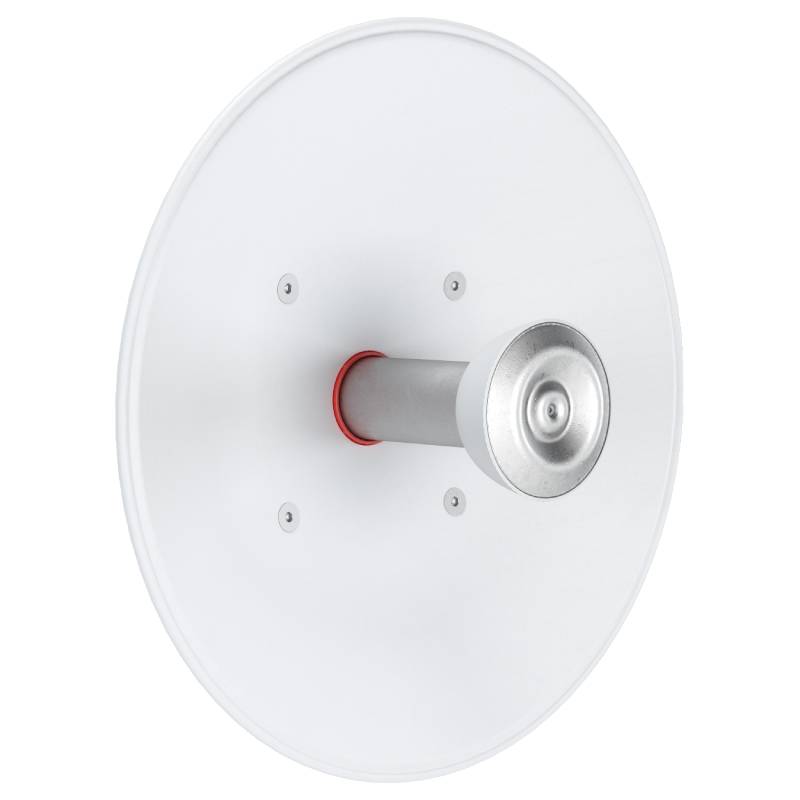

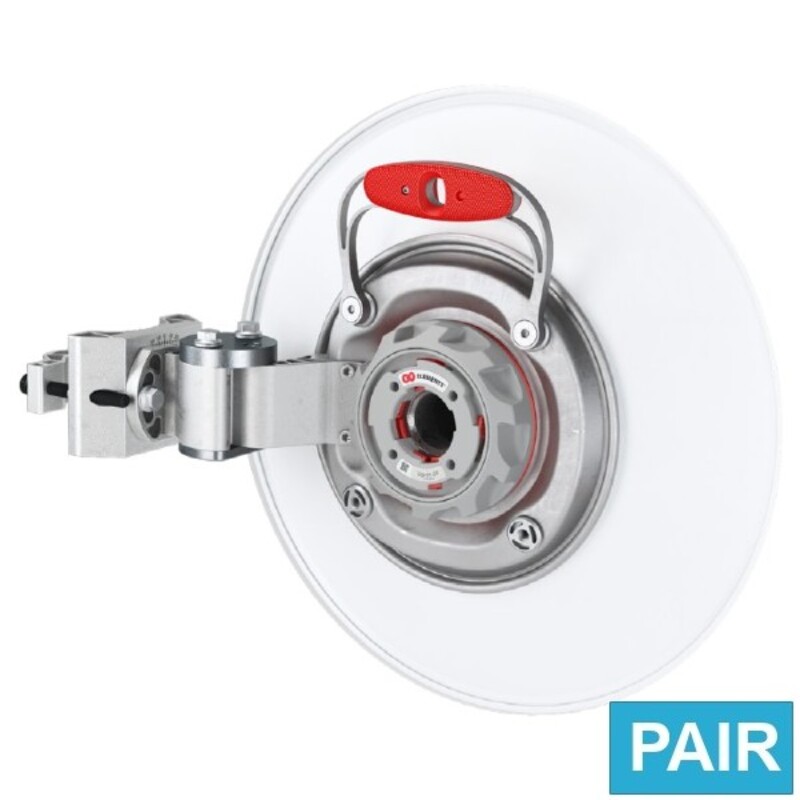

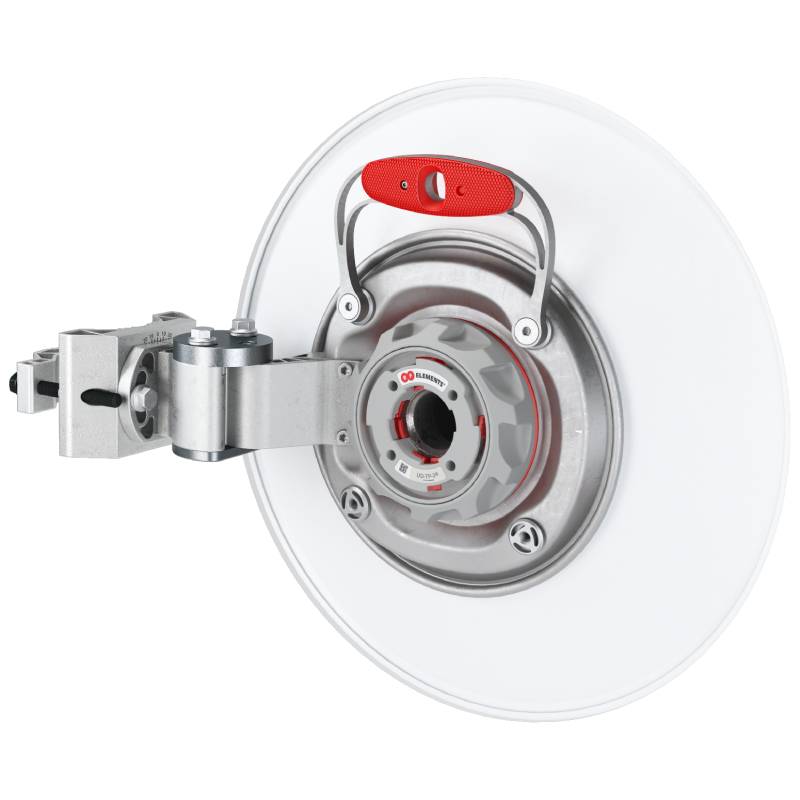

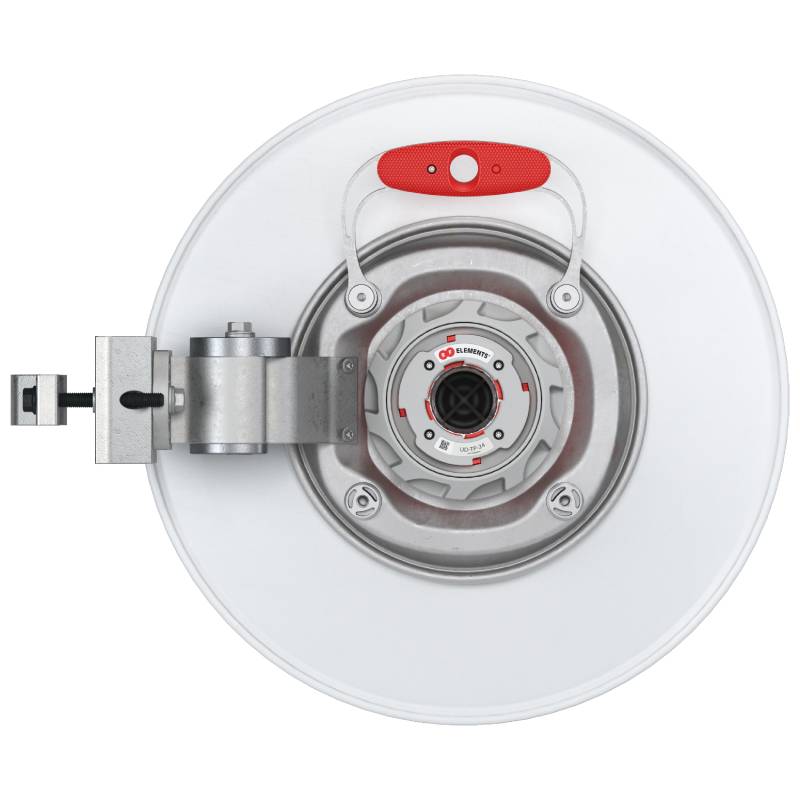

UD-TP-24 is one directional antenna from the RF elements workshop, characterized by a symmetrical beam angle, reduction of the side lobes and interference, gain of 24 dBi and TwistPort connector.
TwistPort connector - Convenient and lossless
The TwistPort connector is virtually lossless and changes all established standards thanks to its easy handling.
There are no RF connectors or RF cables that cause significant signal loss. Compared to commonly used coaxial cables and connectors, the loss on TwistPort is almost immeasurable.
Connection and disconnection is ingeniously simple and can be done with one hand.
Platform support
For use with third-party products such as MikroTik, Ubiquiti or Cambium, RF elements offer a wide range of adapters that will allow you to easily connect these devices to the TwistPort connector. This will allow you to transfer any unit to another antenna with a single click without screwing up the pigtails.
|
Specifications: |
|
Part # |
UD-TP-24 |
|
Gain |
24 dBi |
|
Antenna Connection |
TwistPortTM - Quick Locking Waveguide Port |
|
Antenna Type |
Parabolic Dish |
|
Pole Mounting Diameter |
40-80 mm |
|
Environmental |
IP65 |
|
Operating Temperature |
-40 °C to +60 °C |
|
Wind Survivability |
160km/h |
|
Wind Load |
115 N at 160 km/h |
|
Antenna Compatibility |
Any TwistPort Adaptor with TwistPort connector
Any SIMPER Radio with TwistPort connector
|
