RF Elements » UD-TP-24

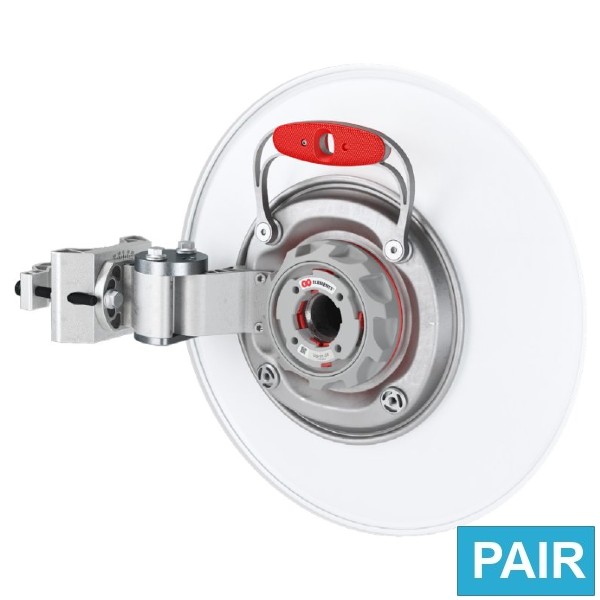

UD-TP-24 - UltraDish TP 24 - Directional Parabolic Dish Antenna with TwistPort, 5GHz, 24dBi - 2pack
[2746][UD-TP-24]
Price: 217,36€
 Order or Qty  Price
 > 500€  5+   215,18€
 > 1000€  10+   213,01€
 > 2000€  20+   210,84€
 > 5000€  40+   208,66€
 > 10000€  100+   206,49€
Prices exclude VAT

UD-TP-24 - UltraDish TP 24 - Directional Parabolic Dish Antenna with TwistPort, 5GHz, 24dBi - 2pack

Ships in:
3-5 working days
Order Qty:
UPC:708747439977
EAN:0708747439977

UD-TP-24

UD-TP-24 is one directional antenna from the RF elements workshop, characterized by a symmetrical beam angle, reduction of the side lobes and interference, gain of 24 dBi and TwistPort connector.

TwistPort connector - Convenient and lossless

The TwistPort connector is virtually lossless and changes all established standards thanks to its easy handling.

There are no RF connectors or RF cables that cause significant signal loss. Compared to commonly used coaxial cables and connectors, the loss on TwistPort is almost immeasurable.

Connection and disconnection is ingeniously simple and can be done with one hand.

Platform support

For use with third-party products such as MikroTik, Ubiquiti or Cambium, RF elements offer a wide range of adapters that will allow you to easily connect these devices to the TwistPort connector. This will allow you to transfer any unit to another antenna with a single click without screwing up the pigtails.

Specifications:
Part # UD-TP-24
Gain 24 dBi
Antenna Connection TwistPortTM - Quick Locking Waveguide Port
Antenna Type Parabolic Dish
Pole Mounting Diameter 40-80 mm
Environmental IP65
Operating Temperature -40 °C to +60 °C
Wind Survivability 160km/h
Wind Load 115 N at 160 km/h
Antenna Compatibility
Any TwistPort Adaptor with TwistPort connector
Any SIMPER Radio with TwistPort connector


Return for:
Refund: Store Credit: Repair:
20 day(s) 0 day(s) 24 month(s)
