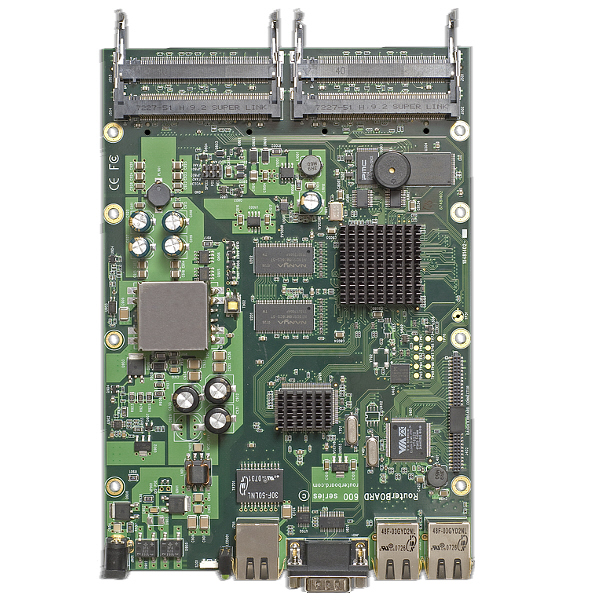

Introducing the RouterBOARD 600.
The high performance wireless platform. It has four miniPCI slots and three gigabit ethernet ports and it is the fastest wireless board that MikroTik has ever made.
The heart of this device is the new state of the art PowerPC networking processor which makes the RB600 faster than any other MikroTik product, introducing a whole new class to the RouterBOARD brand.
Two Compactflash slots for webproxy cache and configuration backups of the User Manager database or The Dude server.
RB600 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router/firewall/bandwidth manager or hotspot.
|
RouterBOARD 600 Specifications : |
|
CPU |
MPC8343E 266/400MHz |
|
Memory |
128MB SDRAM onboard memory chip |
|
Boot loader |
RouterBOOT, 1Mbit Flash chip |
|
Data storage |
64MB onboard NAND, 2 x CompactFlash slots (TrueIDE Microdrive) |
|
Ethernet ports |
Three 10/100/1000 Mbit/s Fast Ethernet port supporting Auto-MDI/X |
|
MiniPCI slot |
Four MiniPCI Type IIIA/IIIB slots |
|
Serial ports |
One DB9 RS232C asynchronous serial port |
|
FAN control |
Two 5V DC fan power output headers with rotation sensor and
automatic fan switching (maximum output current - 300mA total) |
|
Speaker |
Mini PC-Speaker present. |
|
Power options |
IEEE802.3af PoE: 38..56V DC including over datalines.
Power jack: 10..56V DC |
|
Power Consumption |
~9W without extension cards, maximum – 35+ W |
|
Temperature |
Operational: -20°C to +65°C (-4°F to 149°F) |
|
Humidity |
Operational: 70% relative humidity (non-condensing) |
|
Currently supported OS |
RouterOS 3.0.x |
