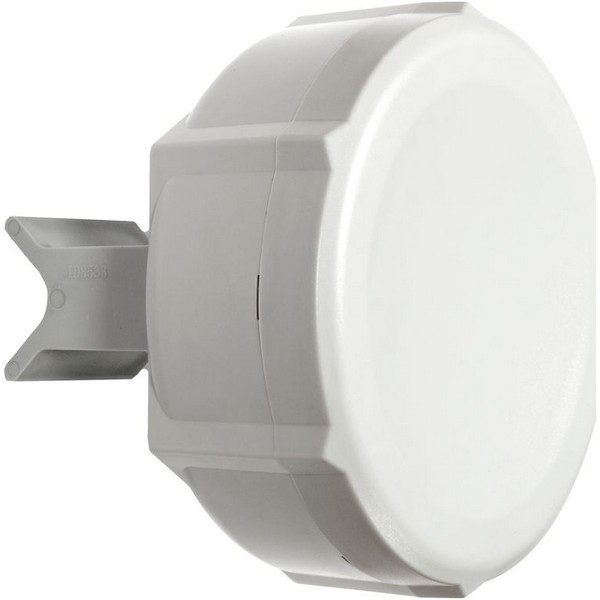

SXT 2 - 10dbi 60 degree integrated AP/Backbone/CPE, dual chain, Gigabit Ethernet
It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with 1600mW wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer!
It comes with L4 license, perfect for covering outdoor area for hotspot clients.
Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO.
|
Specifications |
|
Product code |
RBSXTG-2HnD |
|
Architecture |
MIPSBE |
|
CPU |
AR9344 |
|
CPU core count |
1 |
|
CPU nominal frequency |
600 MHz |
|
Dimensions |
140x140x56mm |
|
RouterOS license |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 100'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
11 W |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
8-30 V |
|
Wireless specifications
|
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
10 |
|
Wireless 2.4 GHz chip model |
AR9344 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
Ethernet
|
|
10/100/1000 Ethernet ports |
1 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals
|
|
Certification |
CE, FCC, EAC, ROHS |
|
IP |
IP54 |
