SXTsq Lite2

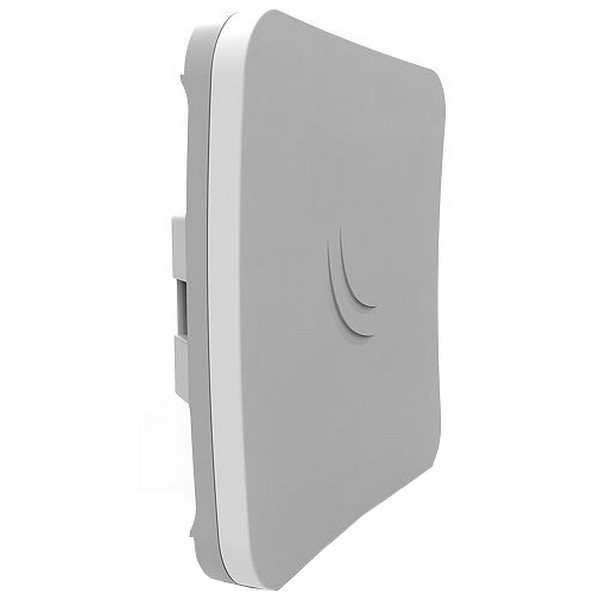

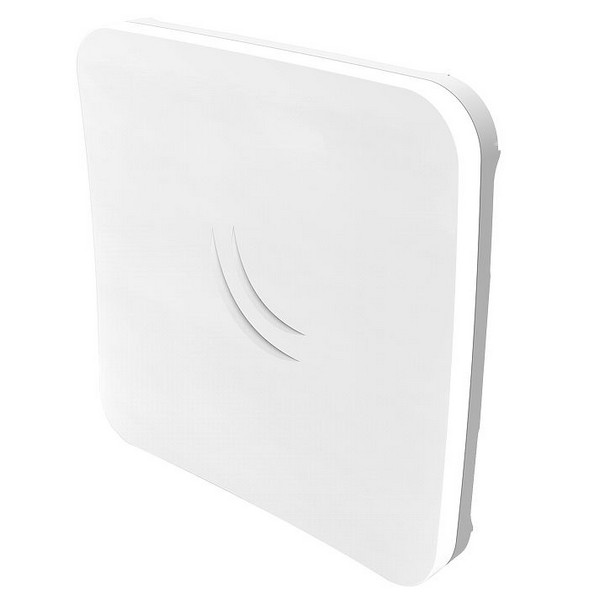

SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna.
Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.
The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

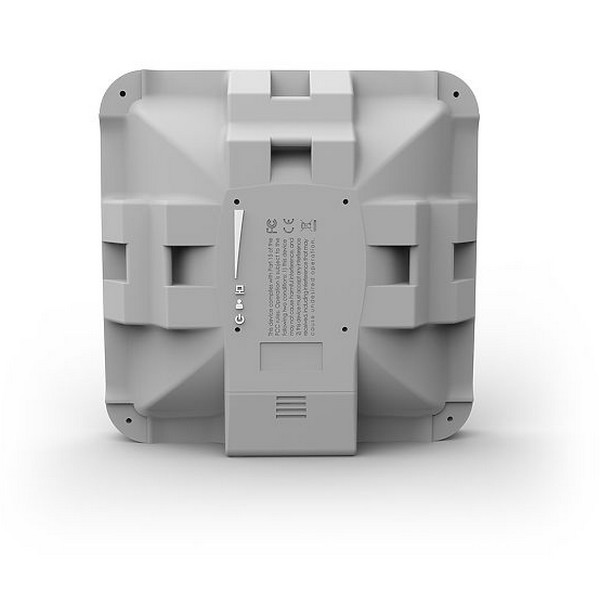

The enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings.
The device includes one 10/100 Mbit Ethernet port.
There is also an easily accessilble grounding connection to protect it against lightning.
|
Specifications: |
|
Product code |
RBSXTsq2nD |
|
Architecture |
MIPSBE |
|
CPU |
QCA9533 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Dimensions |
129 x 129 x 34 mm |
|
License level |
3 |
|
Operating System |
RouterOS |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C .. +70°C |
|
Powering: |
|
Max Power consumption |
5W |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
10-30 V |
|
Number of DC inputs |
1 (PoE-IN) |
|
Wireless: |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
10 |
|
Wireless 2.4 GHz chip model |
QCA9533 |
|
Ethernet: |
|
10/100 Ethernet ports |
1 |
