IP Control » GSMKON-018
5 x Relay board w/o mount for Lan Controller
[GSMKON-018]
Price: 22,10€
 Order or Qty  Price
 > 500€  5+   21,66€
 > 1000€  10+   21,22€
 > 2000€  20+   20,77€
 > 5000€  40+   20,33€
 > 10000€  100+   19,89€
Prices exclude VAT

5 x Relay board w/o mount for Lan Controller

No Stock
Order Qty:

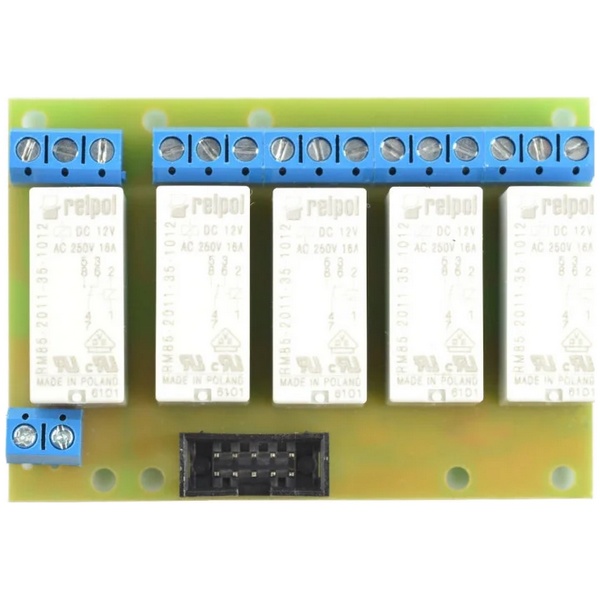

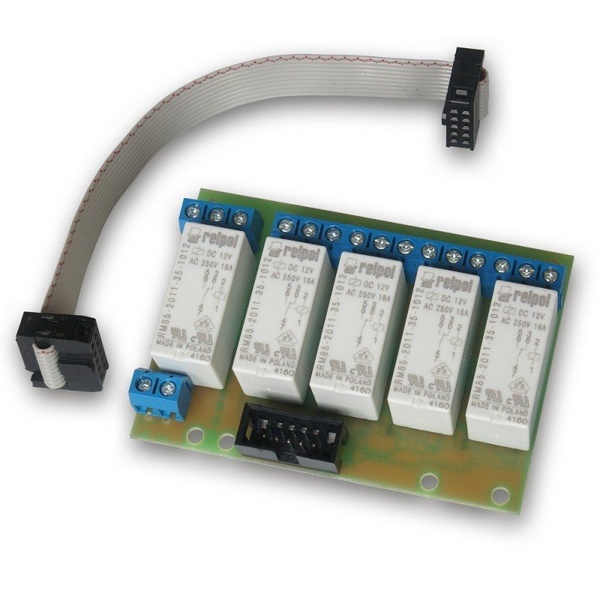

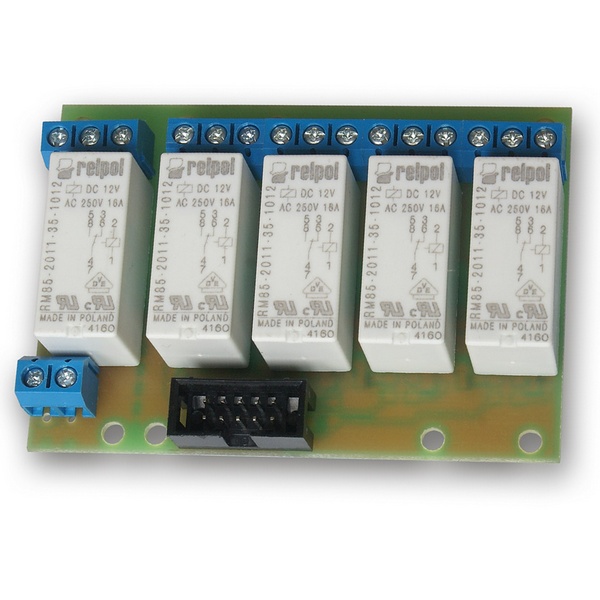

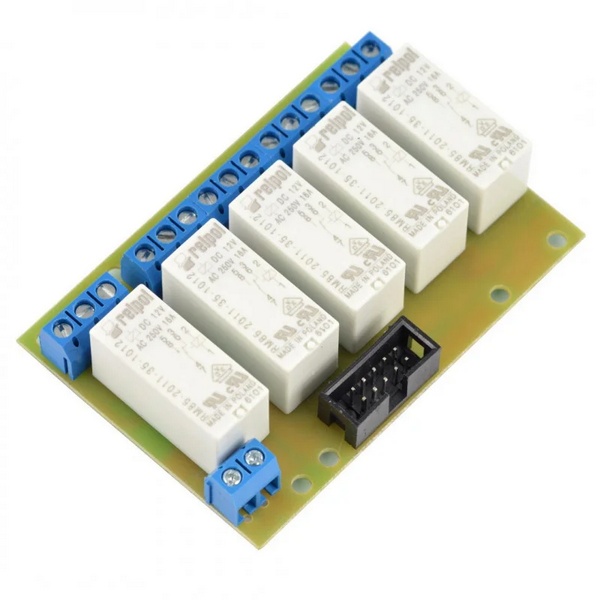

GSMKON-018 - Relays board 5x16A

Board containing 5 high quality RELPOL RM585 relays.

After connecting to GSM Controller v3 or Lan Controller has the ability to turn on, off, reset each of the relays independently.

The main application is to control 4 electrical devices.

The board is powered via LAN/GSM Controller and requires a supply voltage of 9-30V (in this range must be the Lan Controller supply voltage).

Specifications:
Number of relays 5
Relay contacts NO, C, NC
Contact material AgSnO2
Maximum load 16A - for 250V AC (AC-1)
16A - for 24V DC (DC-1)
Contact resistance ≤100mOhm


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
