Aerial.net :: Mounting Bracket for Die Cast Grids (ARL)

Antenna 2.4GHz » Grid » ARLGD-M

Mounting Bracket for Die Cast Grids (ARL)
[0555][ARLGD-M]

The product is
no longer available

Prices exclude VAT

Description:

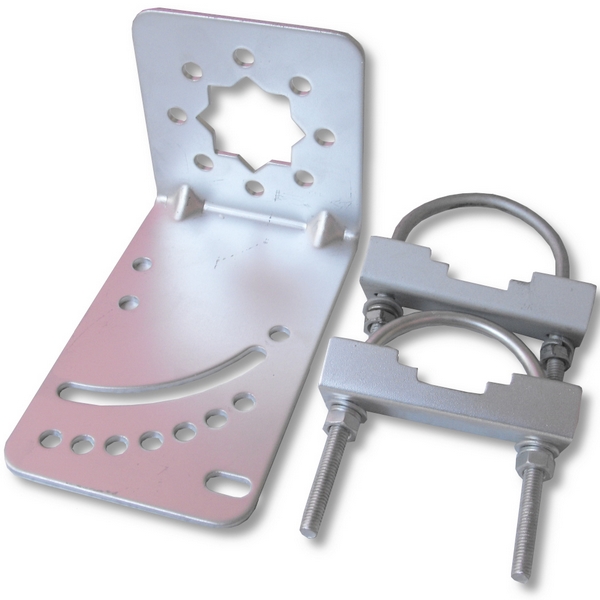

60 Degree Tilt-and-Swivel Mounting Kit for mounting to 1-1/4" to 2" dia. masts.

KIT contents :

1 x Galvanized Steel Antenna Mounting Bracket with positioning slot

2 x Stainless Steel 1 1/4 - 2" U-Bolt 1/4 x 20 thread

2 x Galvanized Steel U-Bolt Base

4 x Flange Nuts 1/4 x 20 thread

8 x Stainless Steel M4 Secure Fly Nuts

8 x Stainless Steel M4 Roundhead Studs

Specifications:

Horizontal Adjustment	360°
Vertical Adjustment	±60°
Weight	0.600Kg / 1.60Lb
For Use With	DCGD53-28 DCGD57-28 DCGD58-29 GD9-DC15 DC24BD-23P-N DC24HDPF1P

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
