Ubiquiti Networks » U-PoE+

Ubiquiti U-PoE+, PoE Injector, 48V 30W, Gigabit, White EU

Price: 13,27€

Order or Qty		Price
> 500€	5+	13,14€
> 1000€	10+	13,01€
> 2000€	20+	12,87€
> 5000€	40+	12,74€
> 10000€	100+	12,61€

Prices exclude VAT

Ubiquiti U-PoE+, PoE Injector, 48V 30W, Gigabit, White EU

In Stock: 32 pcs

Order Qty:

Product Details
PID:	2776
SKU:	U-PoE+
UPC:	817882027205
Single unit:	20×10×4cm, 274 g
Carton 50pcs:	59×40×30cm, 15.40 Kgs
Return Policy
Refund:	20 days
Store Credit:	40 days
Repair / Warranty:	24 months

U-PoE+ - Gigabit 802.3af PoE Injector 48v 30W - Wihte

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

	Delivers up to 30W of PoE+
	Surge, peak pulse, and overcurrent protection

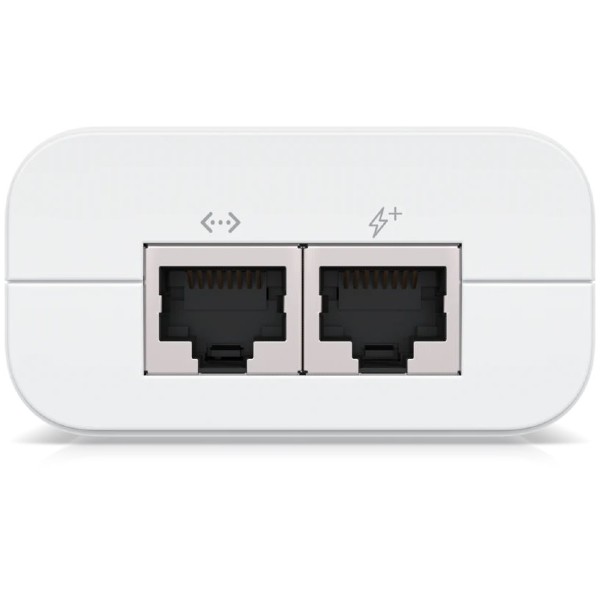

	Contains RJ45 data input, AC cable with earth ground, and PoE+ output
	LED indicator for status monitoring

Powering	Mode	(+)Pins	(-)Pins
4-Pair	A + B	1,2,4,5	3,6,7,8

Product Links:
Datasheet	Installation

Specifications:
Dimensions	86 x 46 x 33 mm
Weight	100 g
Output Voltage	48VDC @ 30W
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	No
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	500mA @ 90VAC
Inrush Current	<100A Peak @ 25°C
Efficiency	84.25+%
Output Ripple	200mV p-p
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
Operating Temperature	0 to 40°C
Storage Temperature	-30°C to 70°C
Operating Humidity	5 to 90% Noncondensing
AC Connector	IEC-320 C6
Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 µs) Power
Peak Pulse Current	36A (10/1000 µs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL

Package Contents:
1 x U-PoE+ in polybag
1 x AC Cable EU, White
1 x Wall mount bracket
