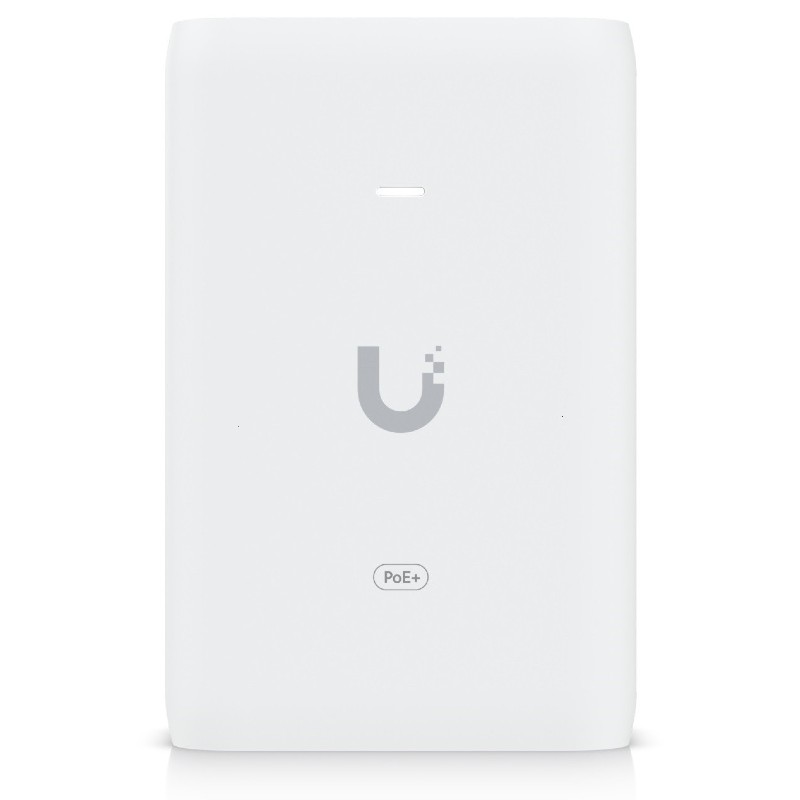

UACC-PoE+-2.5G - 2.5G PoE+ Adapter (30W)
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
 |
Delivers up to 30W of PoE+ |
 |
Surge, peak pulse, and overcurrent protection |
 |

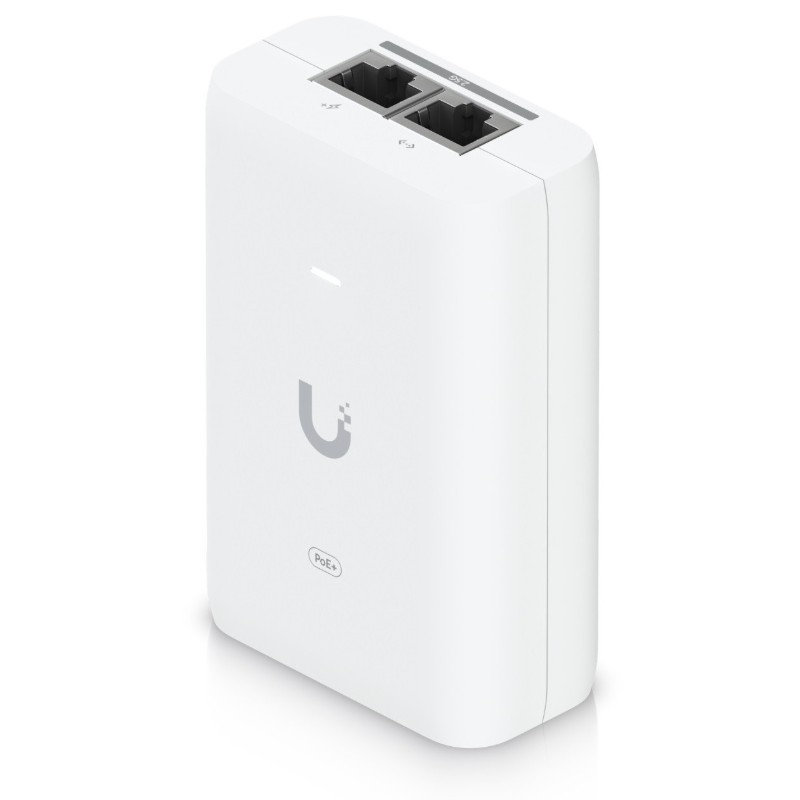

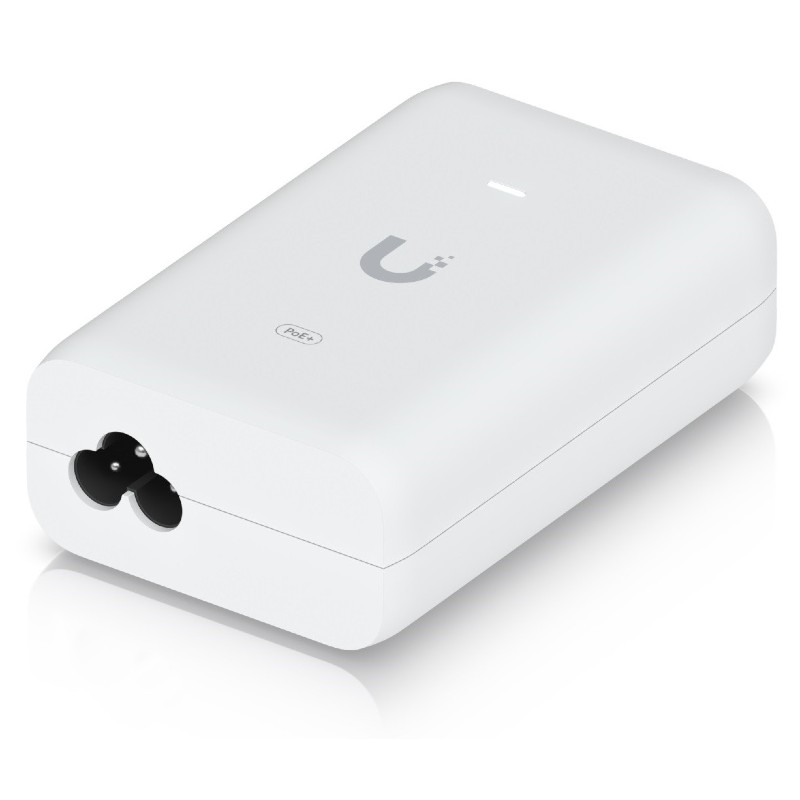

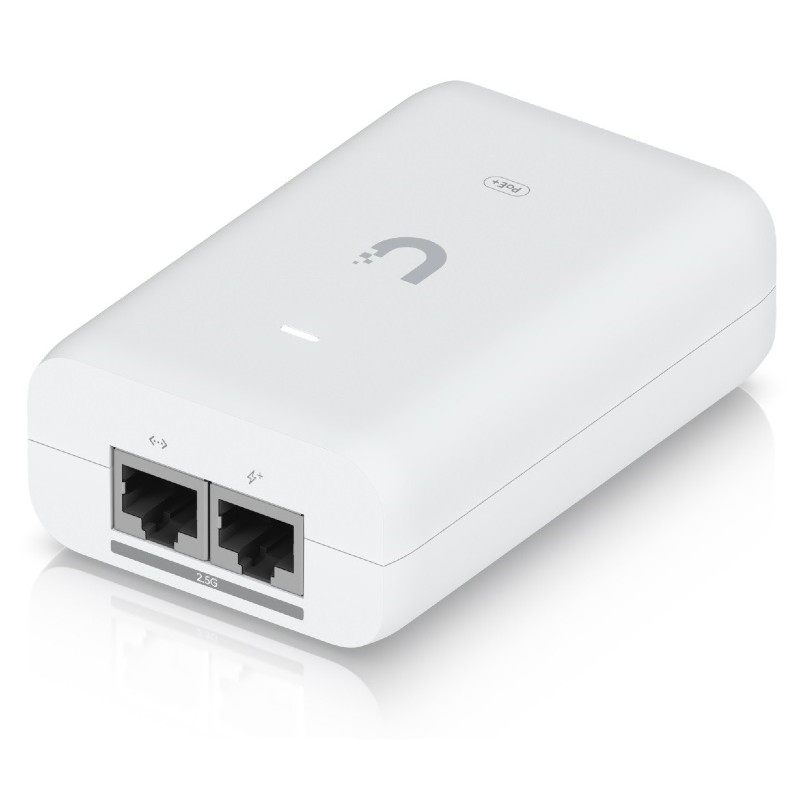

Contains RJ45 data input, AC cable with earth ground, and PoE+ output |
 |
LED indicator for status monitoring |
Compatibility: U7-Pro, U7-Outdoor, U7-Pro-Max, U7-Pro-Wall, U7-Pro-Outdoor, U6-Enterprise-IW, U6-Enterprise
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
2-Pair |
B |
4,5 |
7,8 |
|
Specifications: |
|
Dimensions |
93 x 62 x 35 mm |
|
Weight |
156 g |
|
Output Voltage |
48V DC @ 0.65A |
|
LAN Activity Indicator |
No |
|
Gigabit LAN Port |
Yes, up to 2.5 GbE |
|
Remote Reset Capability |
No |
|
Reset Button |
No |
|
Rated Voltage |
100—240V AC @ 50/60Hz |
|
Input Current |
0.75A max. |
|
Inrush Current |
<150A peak @ 230V AC |
|
Efficiency |
>87% |
|
Output Ripple |
1% max. |
|
Switching Frequency |
65 kHz max. |
|
Line Regulation |
≤ 1% |
|
Load Regulation |
≤ 3% |
|
2-Pair Powering |
Pins 4, 5 (+) and 7, 8 (-) |
|
4-Pair Powering |
No |
|
Data In / PoE |
RJ45 shielded socket |
|
Surge Protection |
Difference and common mode |
|
Clamping Protection |
11V data, 60V power |
|
Max. Surge Discharge |
1500A (8/20 μs) power |
|
Peak Pulse Current |
36A (10/1000 μs) data |
|
Shunt Capacitance |
<5 pF data |
|
Response Time |
<1 ns |
|
Ambient Operating Temperature |
0°C to 40°C |
|
Storage Temperature |
-30°C to 70°C |
|
Ambient Operating Humidity |
10 to 95% noncondensing |
|
Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
