CCR2216-1G-12XS-2XQ capturing the future in a standard 1U rack-mount form-factor. 100 Gigabit networking made easy and affordable – for research, ISP, file hosting and other purposes.

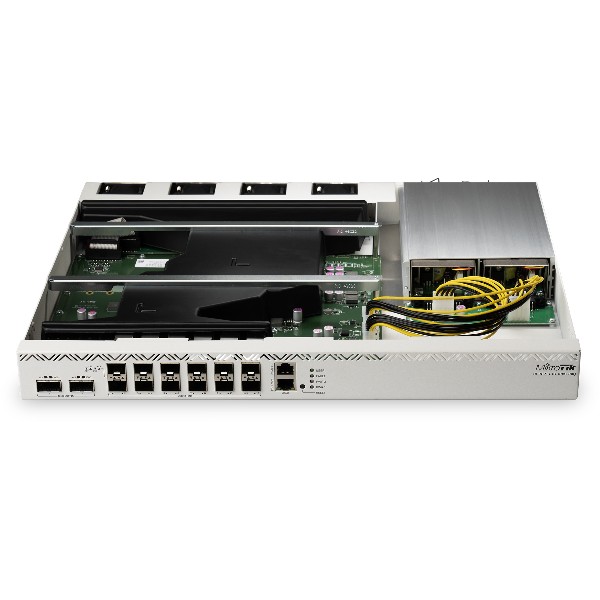

Cloud Core Router 2216 features Marvell Prestera Aldrin2 switch-chip with L3 Hardware Offloading and four 25G CPU connection lines. With L3HW offloaded connections, this CPU can be at least 4x faster than the CCR1072 Tile CPU.

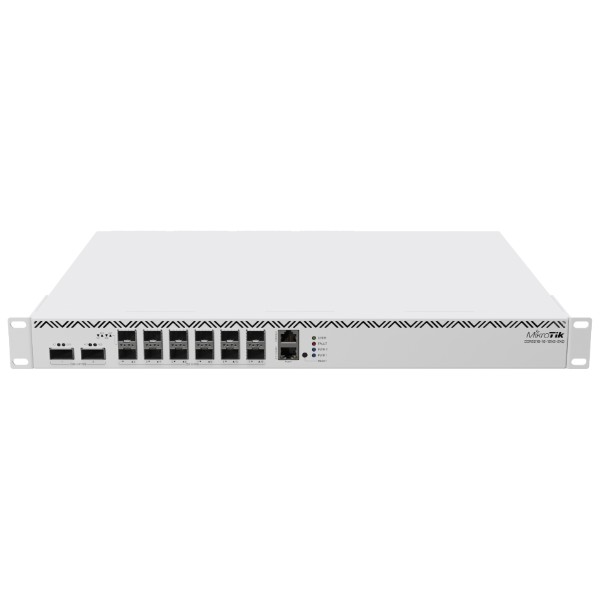

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port.
The device comes with 16 GB of RAM, 128MB NAND storage, and two M.2 SATA slots for additional storage.

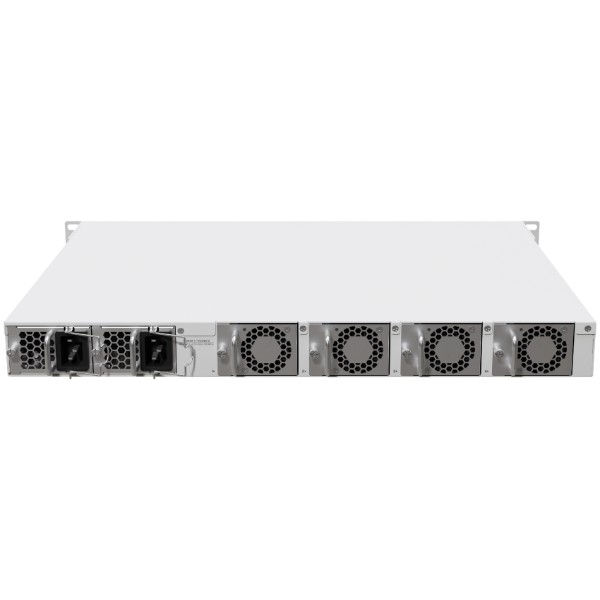

There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies.
|
Details |
|
Product code |
CCR2216-1G-12XS-2XQ |
|
Architecture |
ARM 64bit |
|
CPU |
AL73400 |
|
CPU core count |
16 |
|
CPU nominal frequency |
2000 MHz |
|
Dimensions |
443 x 367 x 44 mm |
|
RouterOS license |
6 |
|
Operating System |
RouterOS (v7 only) |
|
Size of RAM |
16 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-20°C to 60°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Max power consumption |
128 W |
|
Max power consumption without attachments |
80 W |
|
Cooling type |
4 fans |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
Number of 25G SFP28 ports |
12 |
|
Number of 100G QSFP28 ports |
2 |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Number of M.2 slots |
2 |
|
Other |
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |

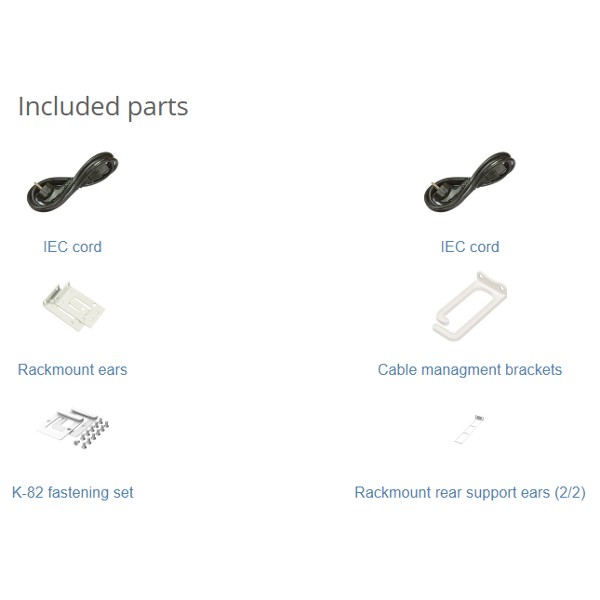

| Package Contents: |
|---|
| 1 x CCR2216-1G-12XS-2XQ
|
| 1 x Screw and feet kit
|
| 1 x Rackmount ears
|
| 2 x IEC cord
|
| Cable management brackets
x |
| Rackmount rear support ears x |
|
