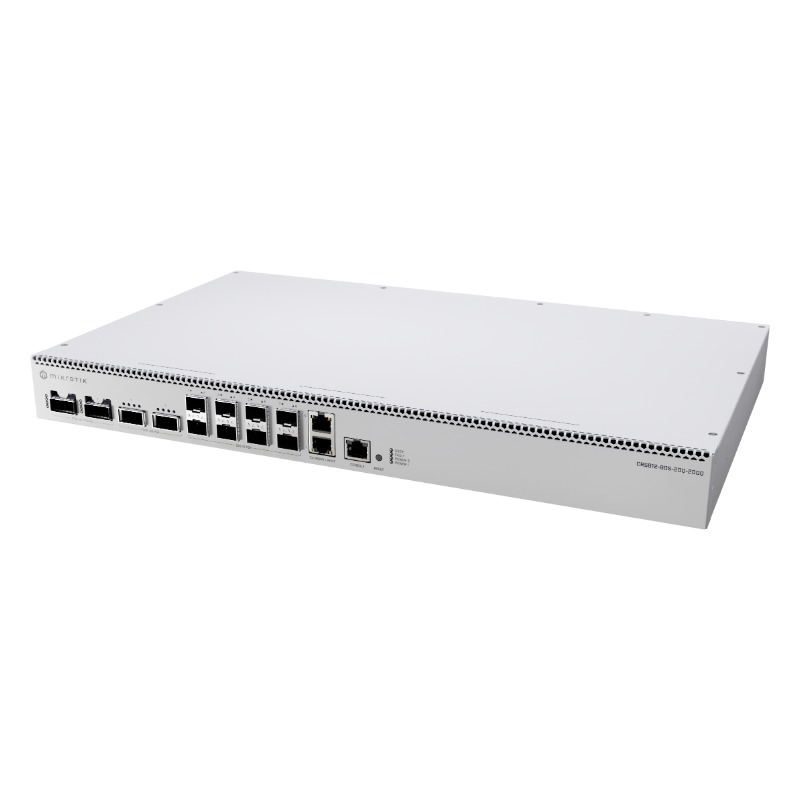

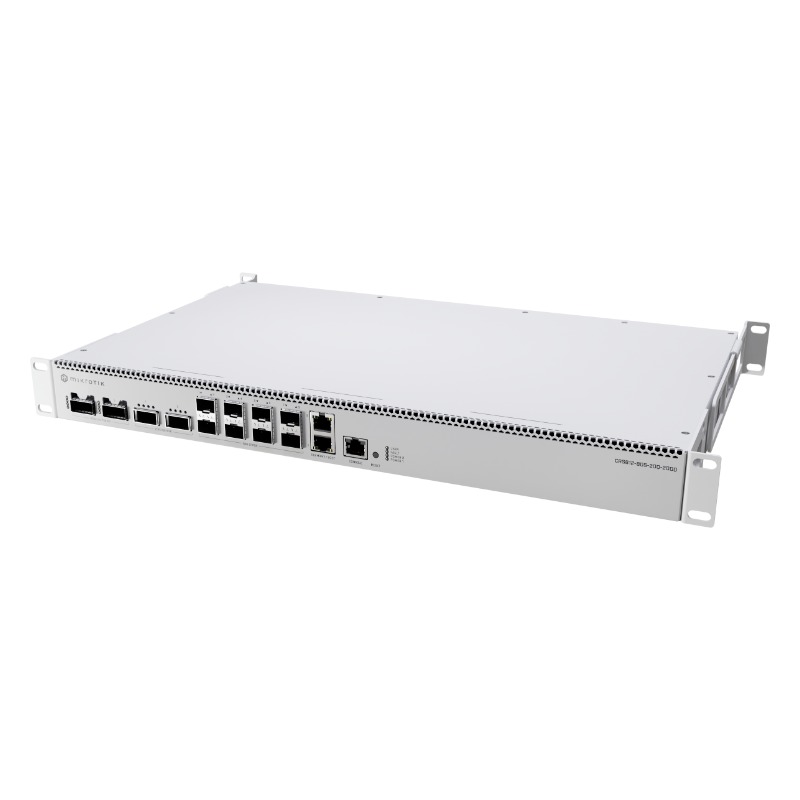

CRS812 DDQ - Quad-core 2 GHz ARM CPU, dual-redundant power supplies and 4x hot-swap cooling fans, 2x 10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, and 2x 400G QSFP56-DD ports.
The MikroTik switch is the ideal solution for modernizing networks and for an easy transition to higher data transfer capacities, up to 400 Gbps with QSFP56-DD interfaces, without the need for extensive investments in new infrastructure.
With a ARM Quad-Core 2 GHz processor and 4 GB RAM, it offers exceptional performance for high-speed transfers and advanced traffic management.
The device runs on RouterOS v7 (Level 6), providing complete flexibility for routing and switching at a professional level.
The MikroTik CRS812 provides a wide range of interfaces, including (2) 10G Ethernet, (8) SFP56 (50 Gb/s), (2) QSFP56 (200 Gb/s), and (2) QSFP56-DD (400 Gb/s) ports, allowing for flexible network configuration according to specific needs.

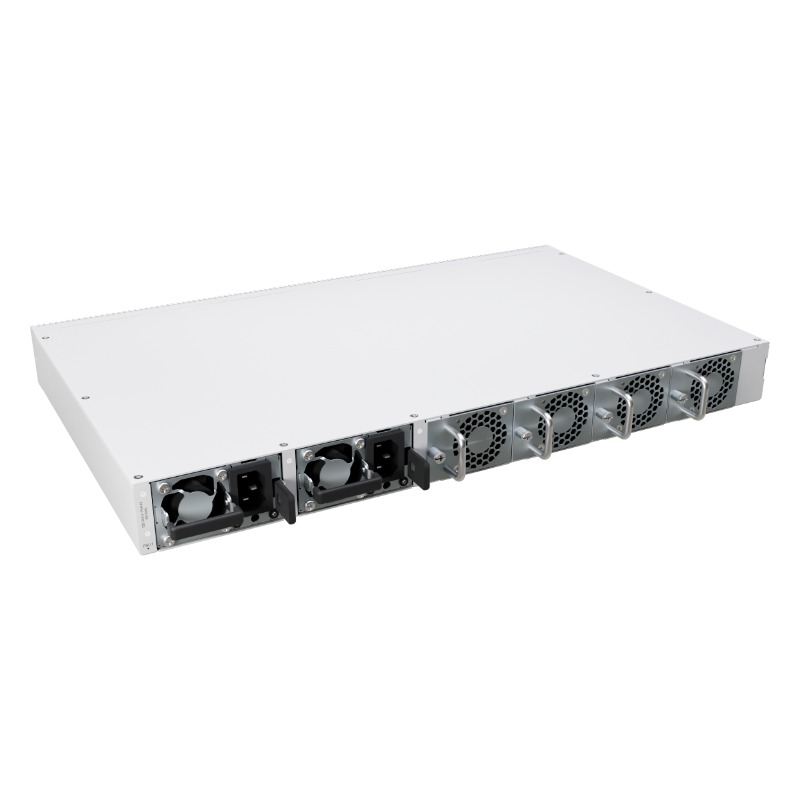

With dual hot swap power supplies and fans, high availability and reliability are ensured even in demanding environments.
|
Specifications
|
|
Product code |
CRS812-8DS-2DQ-2DDQ-RM |
|
Architecture |
ARM 64bit |
|
CPU |
AL52400 |
|
CPU core count |
4 |
|
CPU nominal frequency |
2000 MHz |
|
Switch chip model |
98DX7335 |
|
RouterOS license |
6 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
4 GB |
|
Storage size |
512 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-10°C to 50°C |
|
Powering |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Number of PSU slots |
2 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
134 W |
|
Max power consumption without attachments |
81 W |
|
Cooling type |
4 fans |
|
Ethernet |
|
Number of 1G/2.5G/5G/10G Ethernet ports |
2 (supported: 10M/100M/1G/10G) |
|
Peripherals |
|
Serial console port |
RJ45 |
|
Other |
|
CPU temperature monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Certification & Approvals
|
|
Certification |
CE, EAC, ROHS |
|
IP |
20 |

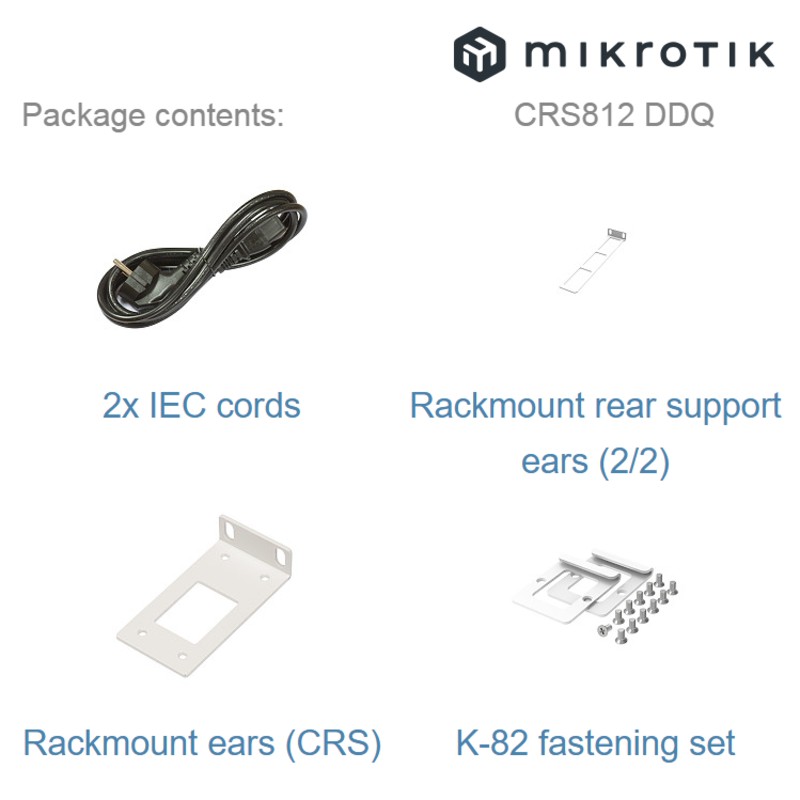

| Package Contents: |
|---|
| 1 x CRS812 DDQ
|
| 2 x IEC Power cable
|
| 1 x K-82 fastening set
|
| 2 x Rackmount rear support ears
|
| 1 x Rackmount Ears |
|
