CSS606-1G-2Gi-3S+OUT - Smart PoE Switch GPERx6, SwOS

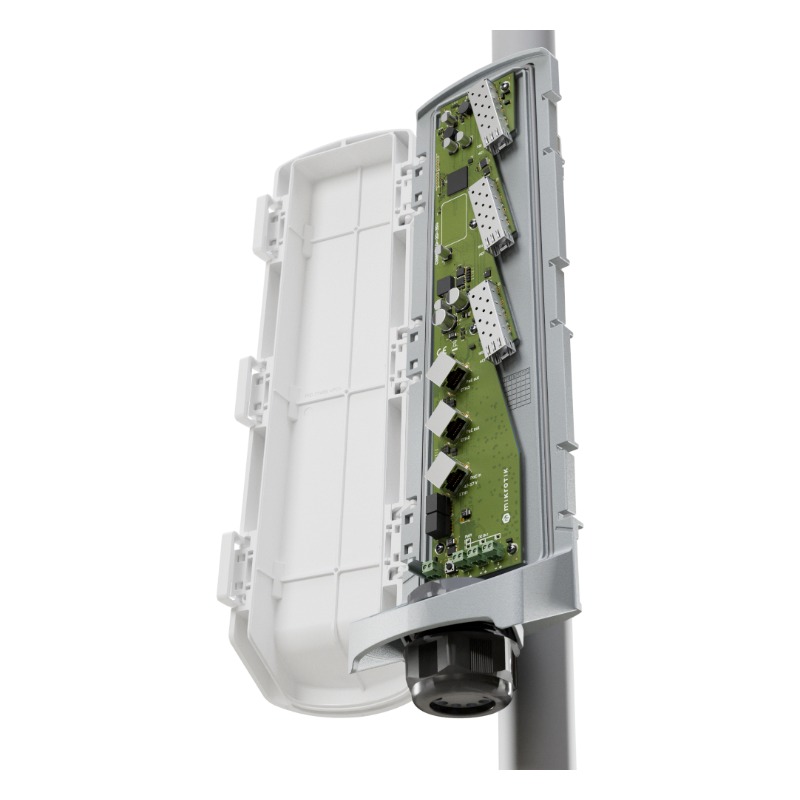

The MikroTik GPeRx6 is equipped with three Gigabit Ethernet ports and three 10G SFP+ ports, offering both copper and fiber connectivity for flexible network topologies.
The first Ethernet port supports PoE-in, while ports two and three can provide PoE-out to power compatible devices such as IP cameras or wireless access points.
Built with a dedicated 10G switching chip, the GPeRx6 ensures high performance and stable throughput.

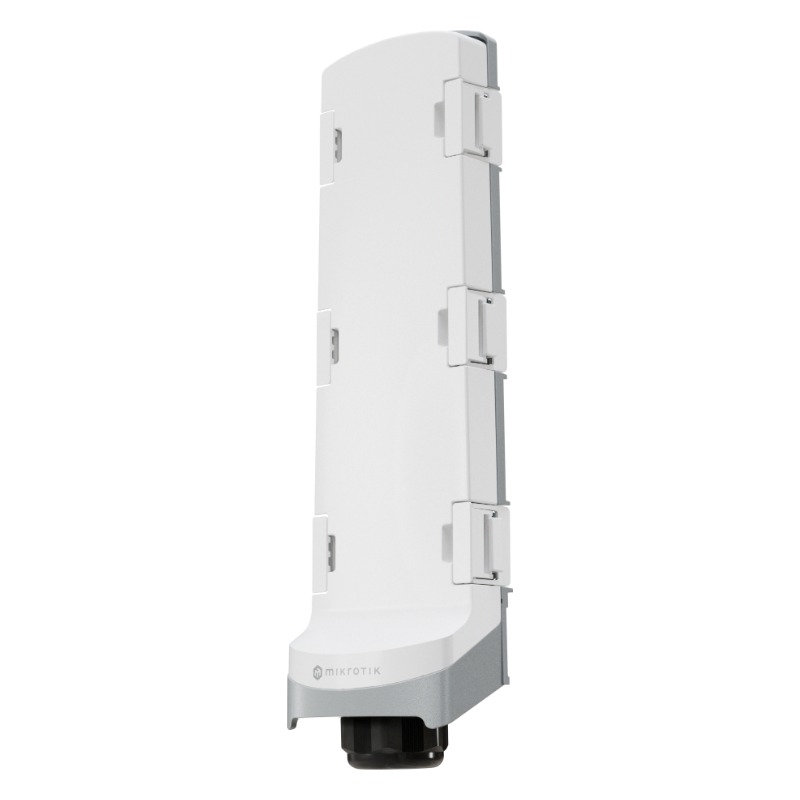

The rugged IP66-rated enclosure protects the hardware from dust and water, while its wide operating temperature range from –40 °C to +70 °C makes it reliable in harsh environments.
|
Specifications: |
|
Product code |
CSS606-1G-2Gi-3S+OUT |
|
Switch chip model |
88E6193X |
|
Operating System |
SwOS |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering: |
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
12-57 V |
|
Max power consumption |
160 W |
|
Max power consumption without attachments |
6 W |
|
PoE in |
802.3 bt |
|
Cooling type |
Passive |
|
PoE in input Voltage |
42-57 V |
|
PoE-out: |
|
PoE-out ports |
Ether2-Ether3 |
|
PoE out |
Passive PoE up to 57V |
|
Low voltage PoE-Out current limit |
1.2 A |
|
High voltage PoE-Out current limit |
0.625 A |
|
Max total out (A) |
2.4 A |
|
Total output power |
150 |
|
Ethernet: |
|
10/100/1000 Ethernet ports |
3 |
|
Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
1 |
|
Number of 1G Ethernet ports with PoE-out |
2 |
|
Fiber: |
|
SFP+ ports |
3 |
|
Certification & Approvals:
|
|
Certification |
CE, EAC, ROHS |
|
IP |
66 |

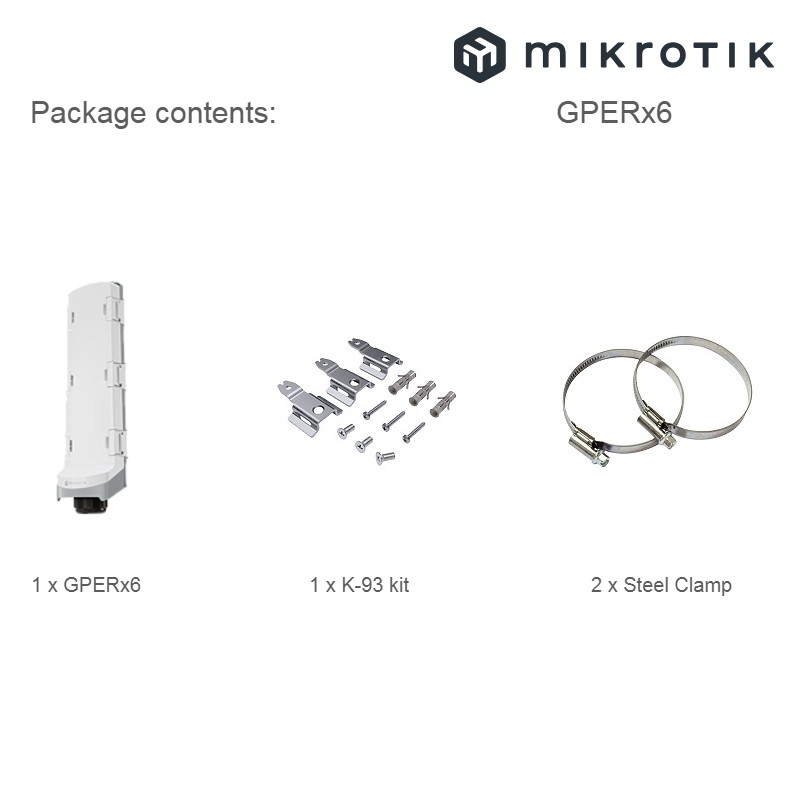

| Package Contents: |
|---|
| 1 x GPERx6
|

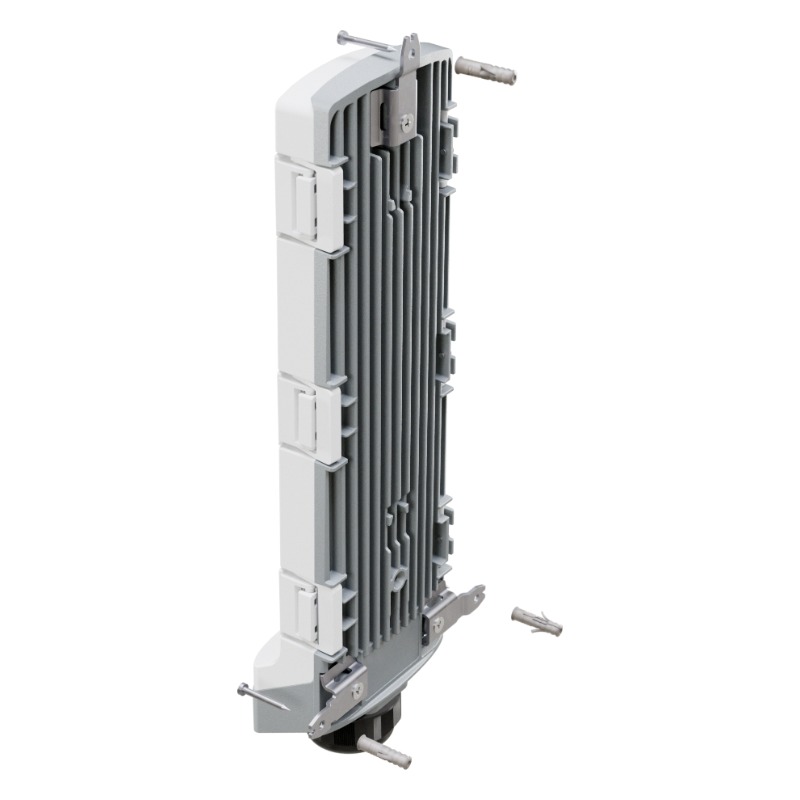

| 1 x K-93 kit
|

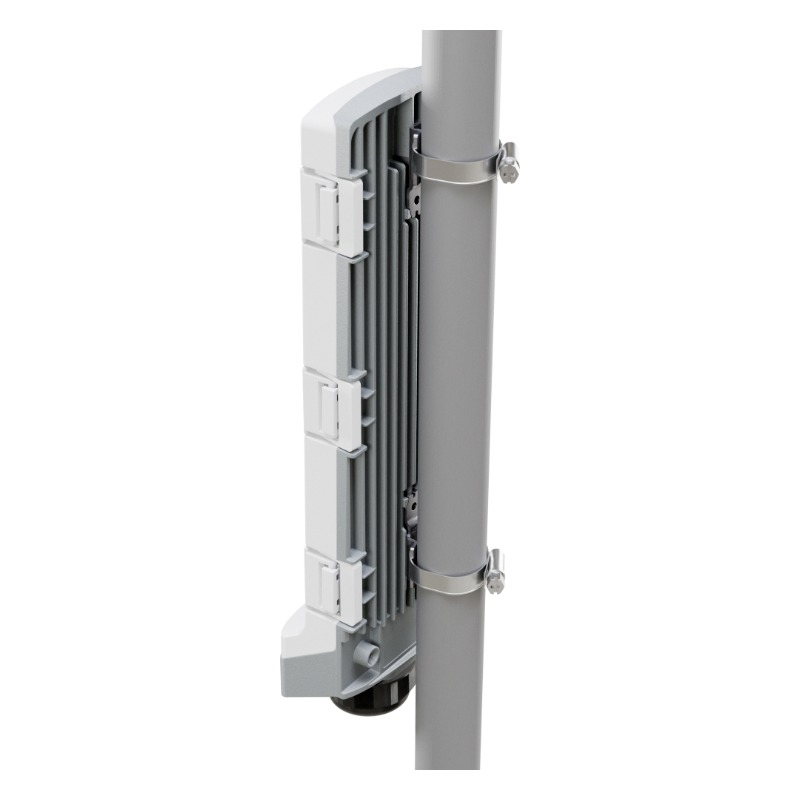

| 2 x Steel Clamps |
|
