MikroTik CRS418-8P-8G-2S+RM, Cloud Router PoE Switch, 150W
[3577][CRS418-8P-8G-2S+RM]
Price: 327,73€
 Order or Qty  Price
 > 500€  5+   324,45€
 > 1000€  10+   321,17€
 > 2000€  20+   317,90€
 > 5000€  40+   314,62€
 > 10000€  100+   311,34€
Prices exclude VAT

MikroTik CRS418-8P-8G-2S+RM, Cloud Router PoE Switch, 150W
In Stock: 1

Available quantity within
3-5 working days: 1
Order Qty:

CRS418-8P-8G-2S+RM - Cloud Router PoE Switch, 150W

The Cloud Router Switch CRS418-8P-8G-2S+RM is a PoE switch that supports both 802.3af/at and 24V passive PoE, with a total PoE budget of 150 W.

The switch offers 17x Gigabit LAN ports, with only ports 9 through 16 supporting PoE. For long-distance expansion, the device also includes 2x 10-Gigabit SFP+ ports.

The maximum power consumption is 28 W without any connected peripherals, and up to 215 W when fully populated.

The device is equipped with two internal redundant power supplies for increased reliability.

Product Links:
Product Page Product Page   Brochure Brochure   Manual Manual   YouTube YouTube

Specifications:
Product code CRS418-8P-8G-2S+RM
Architecture ARM 64bit
CPU IPQ-8072
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model 98DX226S
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF (Approximately) 200.000 hours at 25°C
Tested ambient temperature -20°C to 70°C
IPsec hardware acceleration Yes
Powering:
Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 215 W
Max power consumption without attachments 28 W
Cooling type 4 fans
PoE-out:
PoE-out ports Ether9 - Ether16
PoE out 802.3af/at
Low voltage PoE-Out current limit 1.1 A
High voltage PoE-Out current limit 0.56 A
Max total out (A) 5.4 A
Total output current 5.4
Total output power 150
Ethernet:
10/100/1000 Ethernet ports 17
Number of 1G Ethernet ports with PoE-out 8
Fiber:
SFP+ ports 2
Peripherals:
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

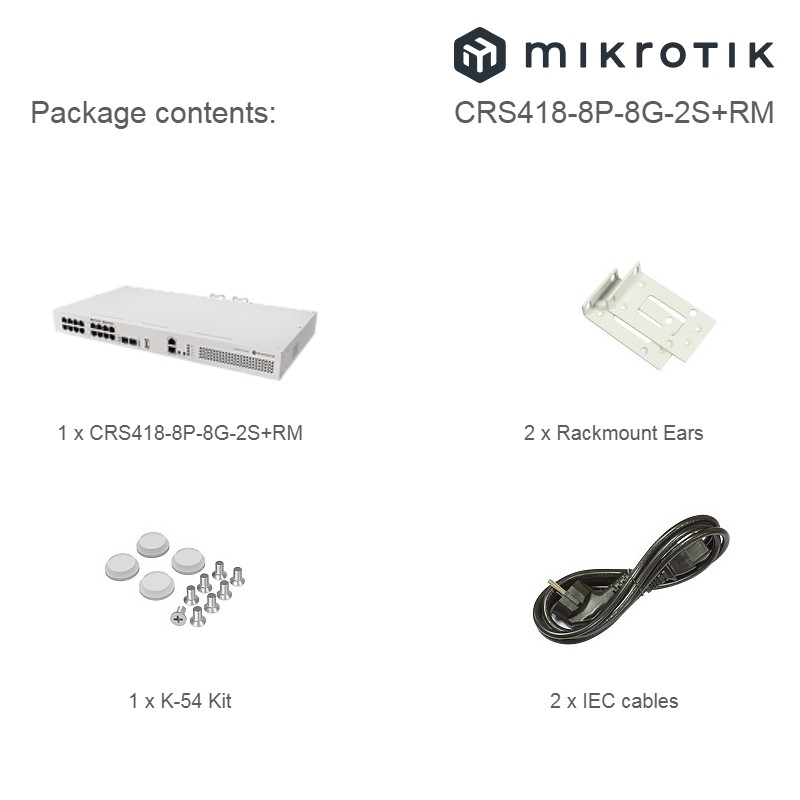

Package Contents:
1 x CRS418-8P-8G-2S+RM
2 x IEC Cables
1 x K-54 kit
2 x Rackmount brackets

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
