The powerful quad-core ARM processor with a frequency of 2.2 GHz and 1 GB RAM ensures enough performance for complex routing tasks and efficient L3 hardware offloading.
With 17× Gigabit Ethernet ports, 8 of which support PoE-out with a total power of up to 150 W, it is ideal for demanding applications that require powering devices directly from the switch.
Two 10G SFP+ ports provide fast data transmission via fiber optic, ensuring excellent connectivity for extensive network systems.
Integrated Wi-Fi 6 with 4×4 MIMO technology ensures fast and stable wireless connectivity covering both the 2.4 GHz and 5 GHz bands.
For optimal coverage, the device offers dedicated openings for external antennas that can be placed outside the rackmount cabinet.
Thanks to redundant power supply with two AC inputs and PoE-out support, the switch is ideal for ensuring high reliability and flexibility.
|
Specifications: |
|
Product code |
CRS418-8P-8G-2S+5axQ2axQ-RM |
|
Architecture |
ARM 64bit |
|
CPU |
IPQ-8072A |
|
CPU core count |
4 |
|
CPU nominal frequency |
2208 MHz |
|
Switch chip model |
98DX226S |
|
RouterOS license |
5 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
1 GB |
|
Storage size |
128 MB |
|
Storage type |
NAND |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-20°C to 70°C |
|
IPsec hardware acceleration |
Yes |
|
Powering: |
|
Number of AC inputs |
2 |
|
AC input range |
100-240 |
|
Number of PSU slots |
2 |
|
Frequency (Hz) |
50-60 |
|
Max power consumption |
227 W |
|
Max power consumption without attachments |
43 W |
|
Cooling type |
4 fans |
|
PoE-out:
|
|
PoE-out ports |
Ether9-Ether16 |
|
PoE out |
802.3af/at |
|
Low voltage PoE-Out current limit |
1.1 A |
|
High voltage PoE-Out current limit |
0.56 A |
|
Total output power |
150 |
|
Wireless specifications:
|
|
Wireless 2.4 GHz Max data rate |
1148 Mbit/s |
|
Wireless 2.4 GHz number of chains |
4 |
|
Wireless 2.4 GHz standards |
802.11b/g/n/ax |
|
Antenna gain dBi for 2.4 GHz |
5 |
|
Wireless 2.4 GHz chip model |
QCN-5024 |
|
Wireless 2.4 GHz generation |
Wi-Fi 6 |
|
Wireless 5 GHz Max data rate |
2400 Mbit/s |
|
Wireless 5 GHz number of chains |
4 |
|
Wireless 5 GHz standards |
802.11a/n/ac/ax |
|
Antenna gain dBi for 5 GHz |
6 |
|
Wireless 5 GHz chip model |
QCN-5054 |
|
Wireless 5 GHz generation |
Wi-Fi 6 |
|
Ethernet: |
|
10/100/1000 Ethernet ports |
17 |
|
Number of 1G Ethernet ports with PoE-out |
8 |
|
Fiber: |
|
SFP+ ports |
2 |
|
Peripherals: |
|
Serial console port |
RJ45 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB 3.0 type A |
|
Max USB current (A) |
1 |

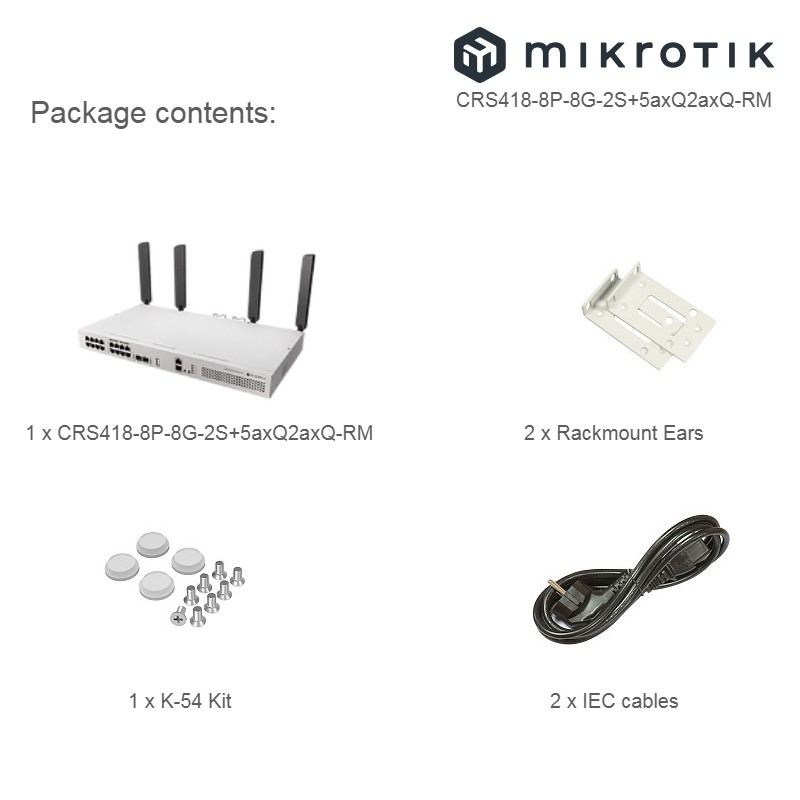

| Package Contents: |
|---|
| 1 x CRS418-8P-8G-2S+5axQ2axQ-RM
|
| 2 x IEC Cables
|
| 1 x K-54 kit
|
| 2 x Rackmount brackets |
|
