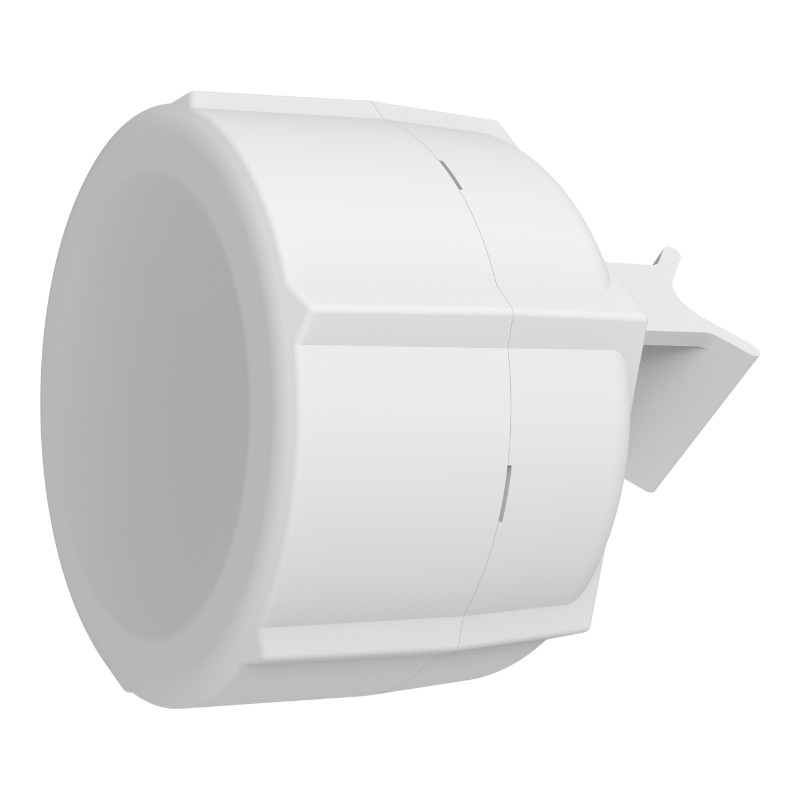

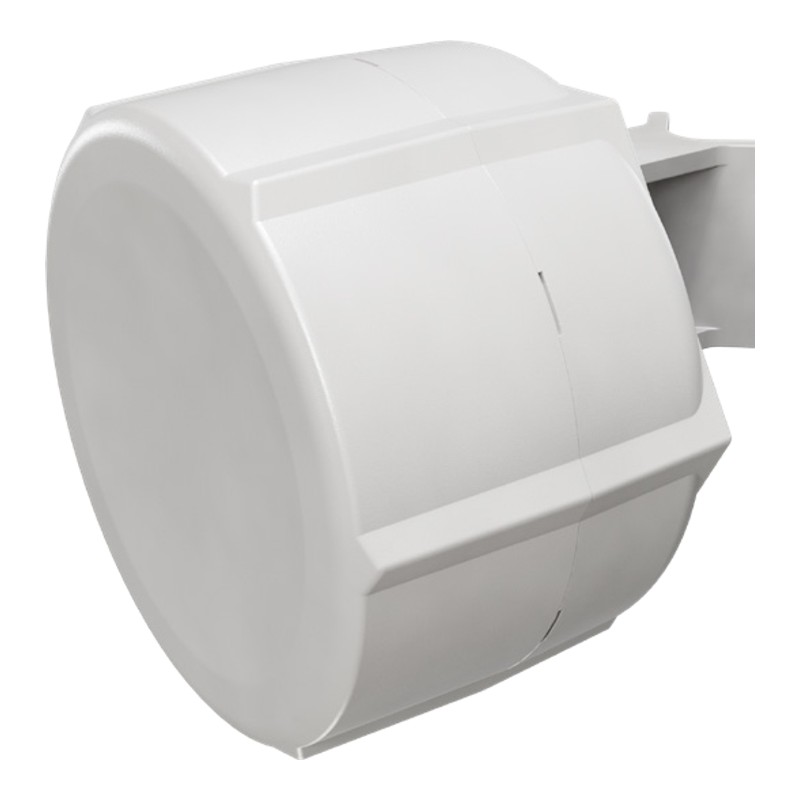

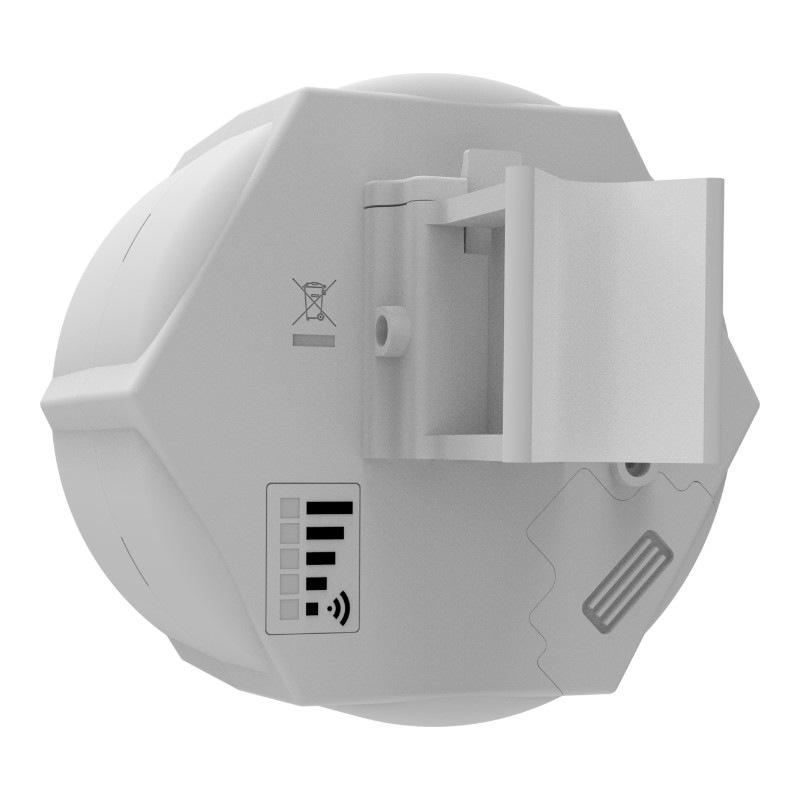

SXTR&R11e-LTE7 - SXT LTE7 kit
A rugged outdoor LTE CPE with the new R11e-LTE7 modem inside. Delivers stable, fast Internet where phones fail – ideal for farms, off-grid connections, and countryside estates. Now with better uplink, PoE in/out, and a wide 12–57 V power range. Mount it, connect, and stay online.
The SXT LTE7 kit is a rugged, outdoor LTE access point designed for remote and hard-to-reach locations that are still within cellular network coverage.
It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide, but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.
|
Specifications: |
|
Product Code |
SXTR&R11e-LTE7 |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 (650 MHz) |
|
RAM |
64 MB |
|
Storage |
16 MB FLASH |
|
Operating System |
RouterOS v7 (License level 3) |
|
Mobile Connectivity |
|
LTE Category |
7 (DL: 300 Mbps; UL: 100 Mbps) |
|
3G Category |
R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
|
SIM Slots |
2 (Micro SIM) |
|
MIMO |
DL 2x2 / UL 1x1 |
|
FDD Bands |
1, 3, 5, 7, 8, 20, 28, 32 |
|
TDD Bands |
38, 40, 41 |
|
Ethernet & PoE |
|
Ethernet Ports |
(2) 10/100 Mbps |
|
PoE-In |
802.3af/at (12-57 V) |
|
PoE-Out |
Passive PoE on Ether2 (up to 57V) |
|
Max PoE-Out Current |
600 mA (Low V) / 400 mA (High V) |
|
Power & Environmental |
|
Max Power Consumption |
24 W |
|
Cooling |
Passive |
|
Operating Temperature |
-40°C to 60°C |
|
IP Rating |
IP54 |

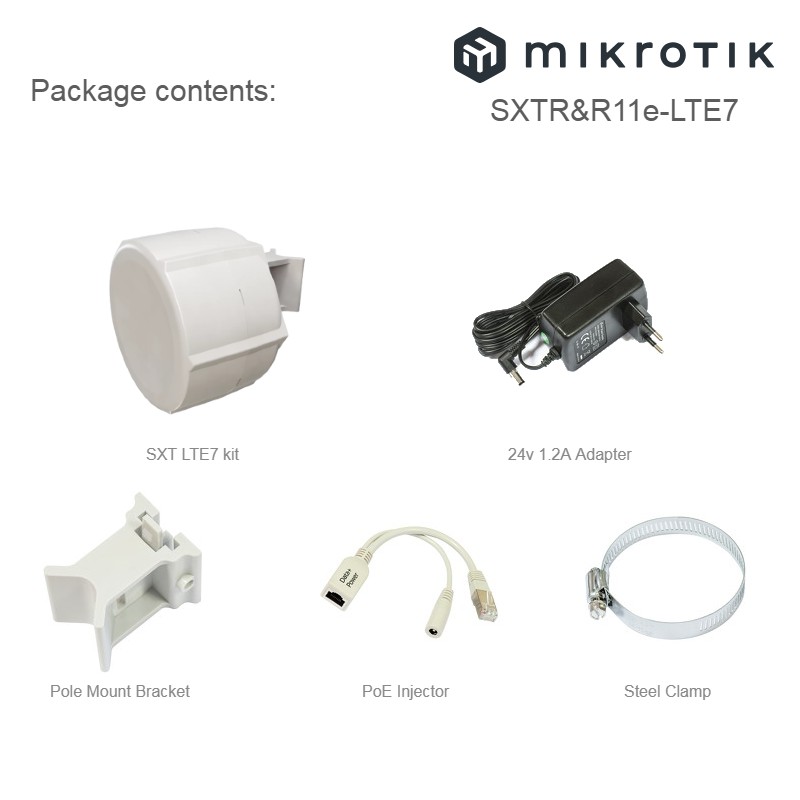

| Package Contents: |
|---|
| 1 x SXT LTE7 kit
|
| 1 x 24V 1.2A power adapter
|
| 1 x Steel Clmap
|
| 1 x PoE Injector
|
| 1 x Mount Bracket |
|
