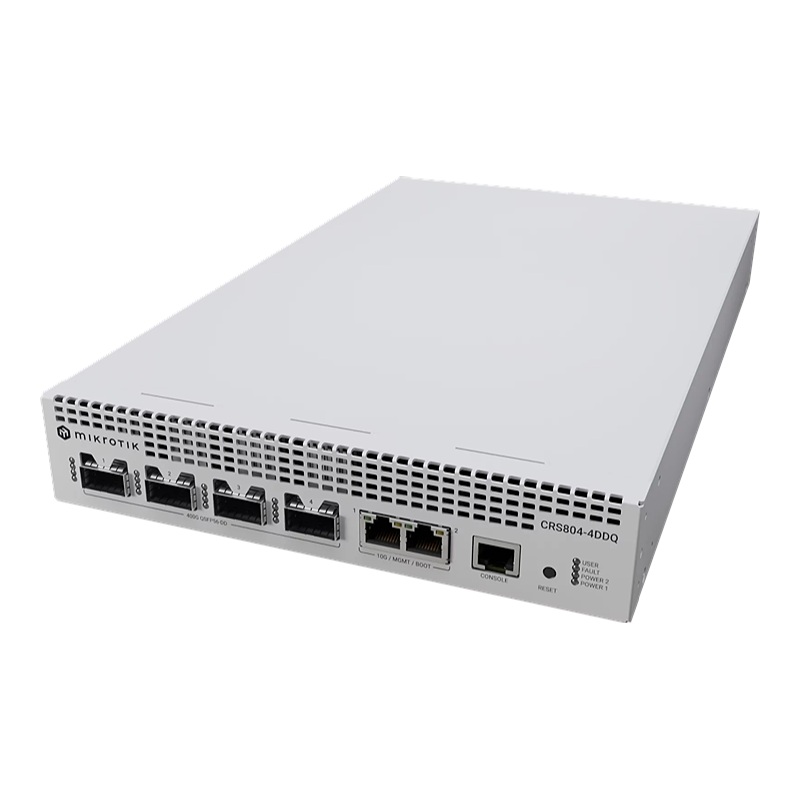

CRS804-4DDQ-hRM - Cloud Router Switch
A compact 1U 400G switch built for AI clusters, storage fabrics, and high-speed aggregation, featuring four 400G QSFP56-DD ports, dual 10 Gigabit Ethernet, and RouterOS v7.
With hot-swap power supplies, robust cooling, and low power consumption, it delivers ultra-high bandwidth, wire-speed performance, and future-proof scalability at an accessible price point.
The CRS804 DDQ is a compact and reliable 400 Gigabit switch designed for modern AI workloads and next-generation network upgrades.
With four 400G QSFP-DD ports and dual 1/10G Ethernet, it delivers exceptional bandwidth density in a quiet and efficient 1U form factor.
 |
ARM64 |
 |
Quad-core CPU |
 |
2.5G |
|
|
400G |
 |
ROS v7 |
|
Specifications: |
|
Product Code |
CRS804-4DDQ-hRM |
|
Architecture |
ARM 64bit |
|
CPU |
AL52400 (4-Core, 2000 MHz) |
|
RAM |
4 GB |
|
Storage |
512 MB NAND |
|
Operating System |
RouterOS v7 (License level 6) |
|
Networking Interfaces |
|
400G QSFP56-DD Ports |
4 |
|
Ethernet Ports |
(2) 10/100/1000/10000 Mbps |
|
Switch Chip |
98DX7335 |
|
Serial Console |
RJ45 |
|
Power & Cooling |
|
AC Inputs |
2 (Redundant) |
|
AC Input Range |
100 - 240 V |
|
Max Power Consumption |
123 W |
|
Cooling |
2 Fans |
|
Environmental & Certifications |
|
Operating Temperature |
-10°C to 60°C |
|
IP Rating |
IP20 |
|
Certifications |
CE, EAC, ROHS |

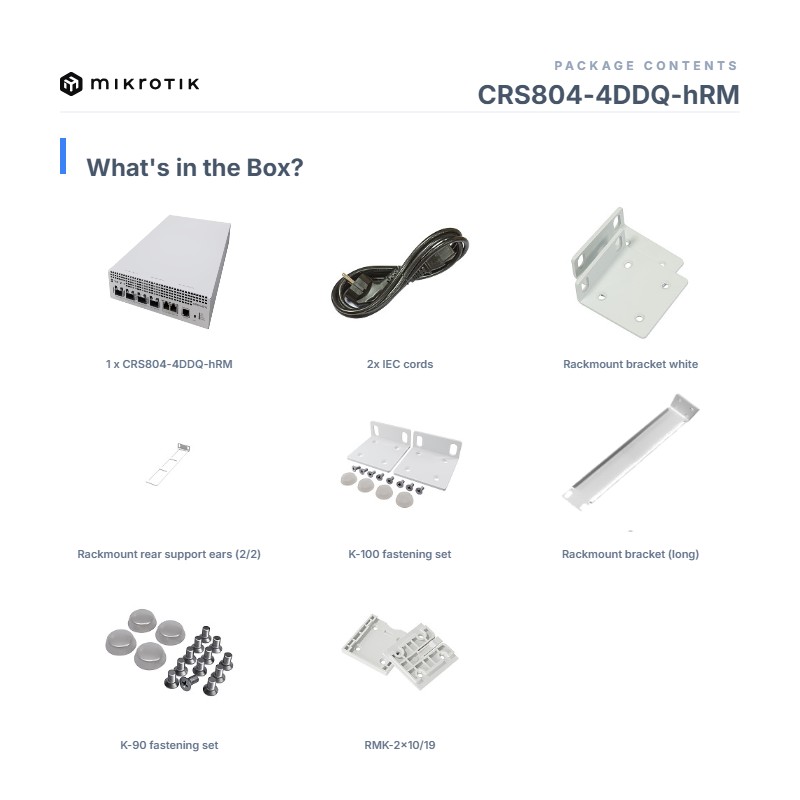

| Package Contents: |
|---|
| 1 x CRS804-4DDQ-hRM device
|
| 2 x AC power cords
|

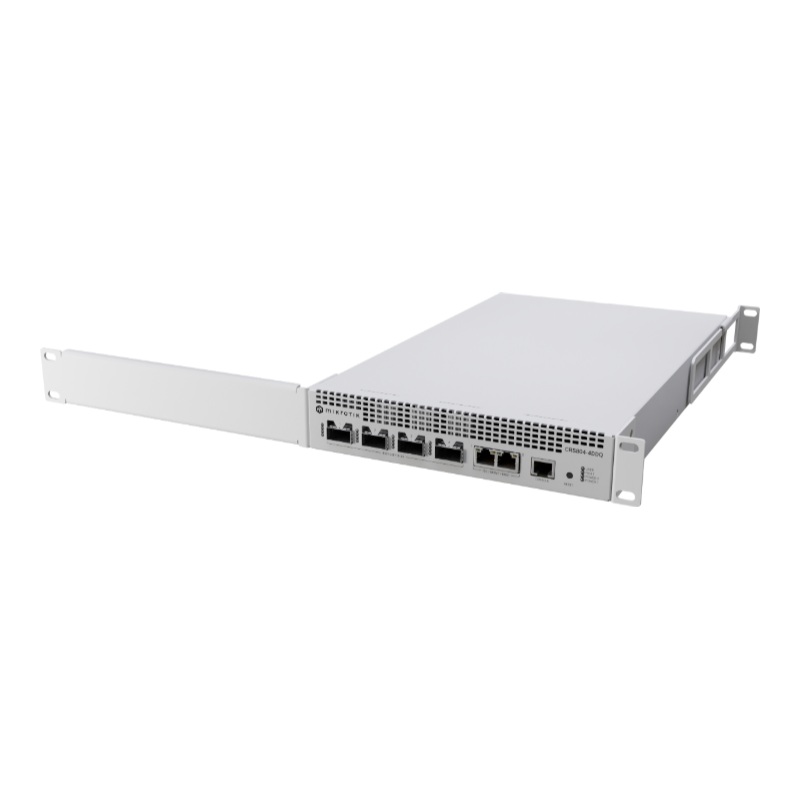

| 1 x 19" rack mounting bracket (RMK-2x10/19)
|
| 2 x Rear rack support brackets
|
| 1 x Fastening set (screws and mounting hardware) |
|
