RB2011UiAS-RM
In comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB).
Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration.
SFP cage is also present (SFP module not included!).

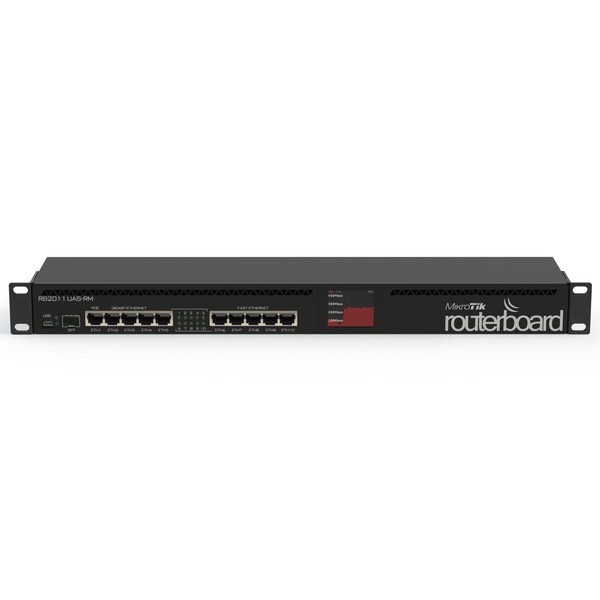

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.
|
Specifications: |
|
CPU: |
Atheros AR9344 600MHz |
|
Memory: |
128MB DDR SDRAM onboard memory |
|
Ethernet: |
Five 10/100 Mbit Fast Ethernet ports with Auto-MDI/X
Five 10/100/1000 Mbit Gigabit Ethernet ports with Auto-MDI/X |
|
Extra's: |
Reset Button. Reset Jumper |
|
LED's: |
Power, User, Ethernet activity |
|
Enclosure: |
Rackmount |
|
SFP Port: |
Yes |
|
LCD Display: |
Yes |
|
Serial Port: |
Yes |
|
USB: |
Yes |
|
Wireless: |
---- |
|
Power Options: |
Jack 8-28V DC; PoE: 8-28V DC on Ether1 (Non 802.3af) |
|
Power Consumption: |
15W Max |
|
Dimensions: |
214 mm x 86 mm, Weight: 146g. |
|
Weight: |
146g |
|
Operating System: |
MikroTik RouterOS, L5 license |
|
Package includes: |
RB2011UiAS-RM, Rackmount bracket, Power adapter, Sticker, screws |
| Package Contents: |
|---|
| 1 x RB2011UiAS-RM
|
| 1 x Rack Mounting Kit
|
| 1 x 24V, 1.2A Power Adapter |
