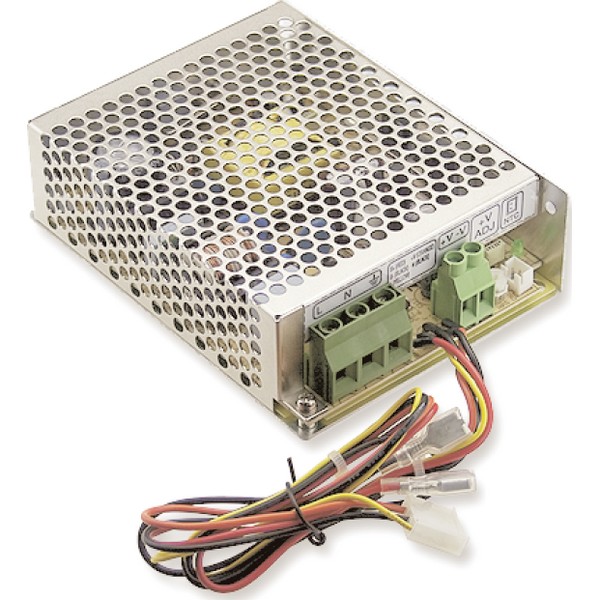

The new SCP-50-24 power supply is a specific purpose security series product with battery charger and UPS function.
Features:
* Universal AC input/Full range
* Protections: Short circuit / Overload / Over voltage/ Battery
* Polarity protections (by fuse)
* Built-in temperature compensation function
* Output voltage detection signal
* Cooling by free air convection
* LED indicator for power on
* No load power consumption <0.75W
* 100% full load burn-in test
Note: Requires 24V battery (2x12V) for UPS function.
|
Specifications |
|
DC Voltage |
27.6V |
|
Rated Current |
1.8A |
|
Current Range |
0-1.8A |
|
Rated Power |
49.7W |
|
Input No Load Ripple&Noise |
200mVp-p |
|
Voltage Adj. Range |
+15-5% |
|
Voltage Tollerance |
+-1.0% |
|
Line Regulation |
+-1.0% |
|
Load Regulation |
+-1.0% |
