CCR1009-7G-1C-1S+PC
MikroTik CCR1009-7G-1C-1S+PC ROS L6
[2018][CCR1009-7G-1C-1S+PC]
The product is
no longer available
Prices exclude VAT

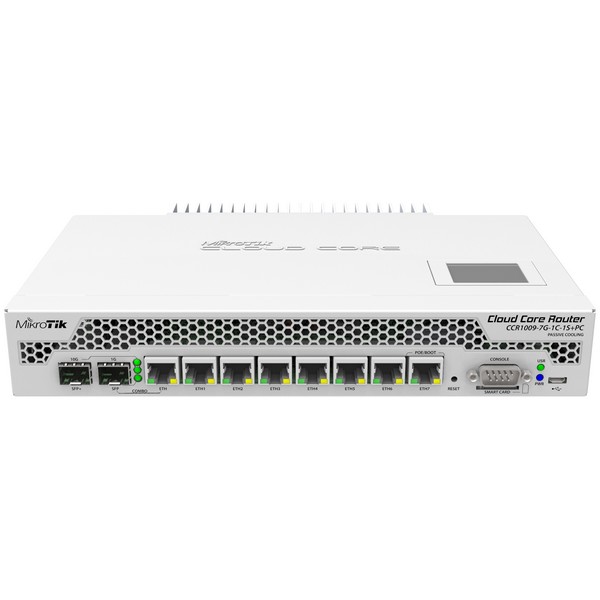

MikroTik CCR1009-7G-1C-1S+PC ROS L6

EAN:4752224001863

CCR1009-7G-1C-1S+PC (Replacement for CCR1009-8G-1C-1S+PC)

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you.

It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

Specifications:
Product code: CCR1009-7G-1C-1S+PC
10/100/1000 Ethernet ports: 7
CPU: TLR4-00980CH-10CE-A3b
CPU Threads count: 9
CPU core count: 9
CPU nominal frequency: 1 GHz
CPU temperature monitor: Yes
Current Monitor: Yes
Dimensions: 272x190x47mm
License level: 6
Max Power consumption: 33W
Number of USB ports: 1
Operating System: RouterOS
PCB temperature monitor: Yes
PoE in: Yes
Power Jack: 1
SFP+ ports: 1
Serial port: RS232
Size of RAM: 2 GB
Storage size: 128 MB
Storage type: NAND
Supported input voltage: 14 V - 57 V
Tested ambient temperature: -20°C .. +60°C
USB Power Reset: Yes
USB slot type: microUSB type AB
Voltage Monitor: Yes


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
