LHG 2

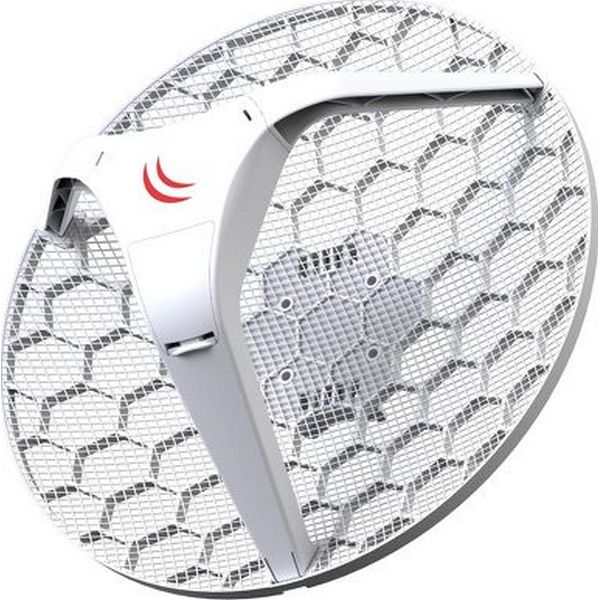

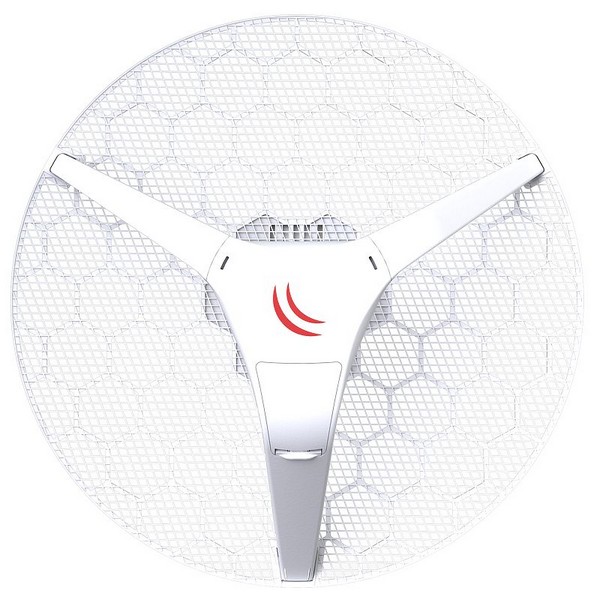

The LHG is a compact and light 2.4GHz 802.11 b/g/n wireless device with an integrated dual polarization 18dBi grid antenna at a revolutionary price.
It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
RBLHG-2nD supports 5150MHz-5875MHz range.
|
Specifications: |
|
Licence level |
3 |
|
CPU nominal frequency |
650 MHz |
|
Size of RAM |
64 MB |
|
Storage type |
Flash |
|
Storage size |
16 MB |
|

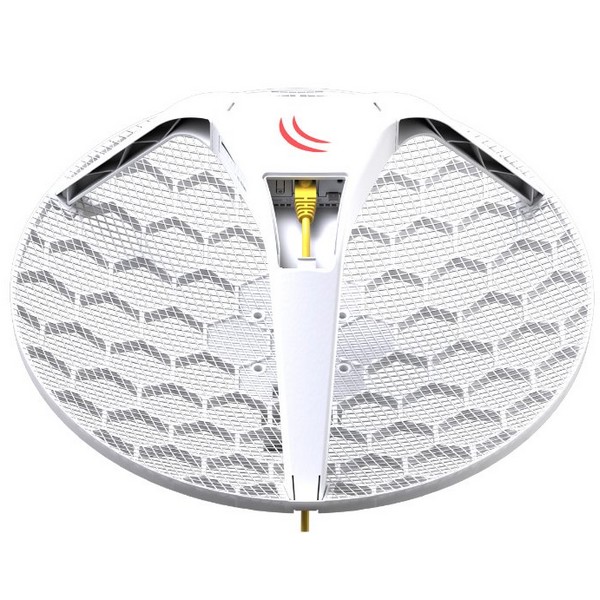

10/100 Ethernet ports |
1 |
|
Wireless |
Built-in 2.4 GHz 802.11b/g/n, dual-chain |
|
Wireless chip model |
QCA9533 |
|
Operating frequency: |
|
International |
2412 - 2484 MHz |
|
Antenna gain |
18 +/- 0.5 dBi |
|
Antenna beam width |
18° |
|
PoE in |
Yes |
|
Supported input voltage |
10 V - 30 V (passive PoE) |
|
Wind Survivability |
205 km/h |
|
Wind Loading |
186N @ 205 km/h |
|
Cross polar |
15 dBi |
|
Port to port isolation |
20 dB |
|
Front to back ratio |
25 dB |
|
Operating Temperature |
-40°C to 70°C |
|
Operating Humidity |
5 to 95% noncondensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
ETSI specification |
EN 302 326 DN2 |
|
Dimensions unit |
Ø391 x 222 mm |
|
Dimensions carton |
450 x 450 x 145 mm |
|
Weight unit |
0.560 kg |
|
Weight carton |
1.98 kg |
|
Max Power consumption |
5 W |
