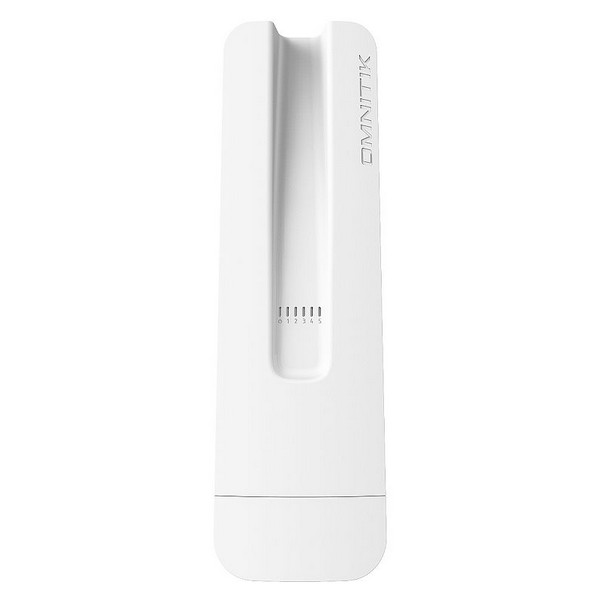

OmniTIK 5 PoE ac
We are glad to introduce a significant upgrade to our popular OmniTIK 5GHz access points!
OmniTIK 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac.
It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.

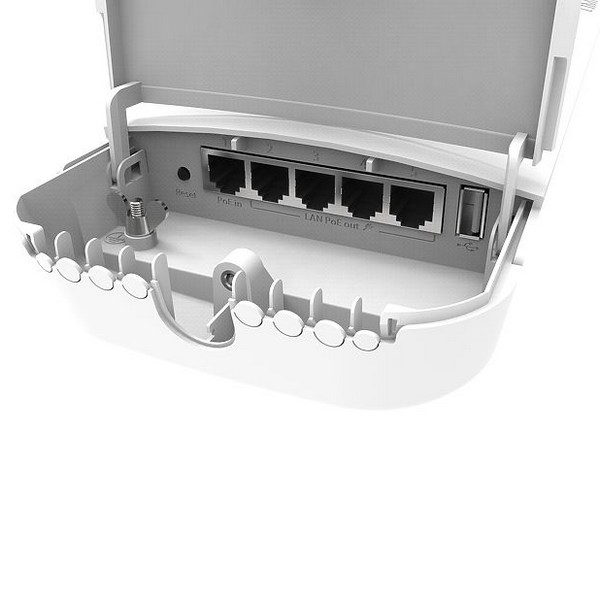

It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power af/at mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
OmniTIK 5 PoE ac supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
|
Specifications |
|
Product code |
RBOmniTikPG-5HacD |
|
Architecture |
MIPSBE |
|
CPU |
QCA9557 |
|
CPU core count |
1 |
|
CPU nominal frequency |
720 MHz |
|
Dimensions |
416 x 129 x 58 mm |
|
License level |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
12-57 V |
|
PoE out |
802.3af/at |
|
PoE-out ports |
Ether2-Ether5 |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max out per port output (input > 30 V) |
450 mA |
|
Max out per port output (input < 30 V) |
1 A |
|
Max total out (A) |
2 A |
|
Max power consumption |
66 W |
|
Max power consumption without attachments |
18 W |
|
Wireless |
|
Wireless 5 GHz Max data rate |
867 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz standards |
802.11a/n/ac |
|
Antenna gain dBi for 5 GHz |
7.5 |
|
Wireless 5 GHz chip model |
QCA9892 |
|
Wireless 5 GHz generation |
Wi-Fi 5 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
5 |
|
Peripherals |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Other |
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |

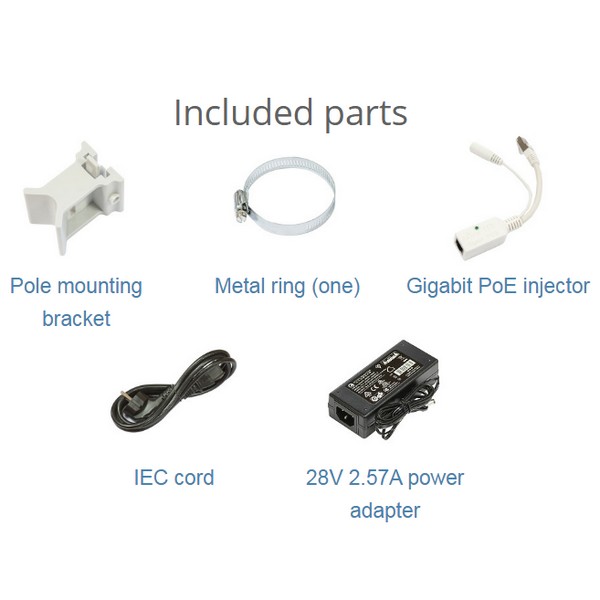

| Package Contents: |
|---|
| 1 x OmniTikPG-5HacD
|
| 1 x 28V 2.57A power adapter
|
| 1 x IEC cord
|
| 1 x Metal ring
|
| 1 x Gigabit PoE Injector
|
| 1 x Pole Mounting Bracket |
|
