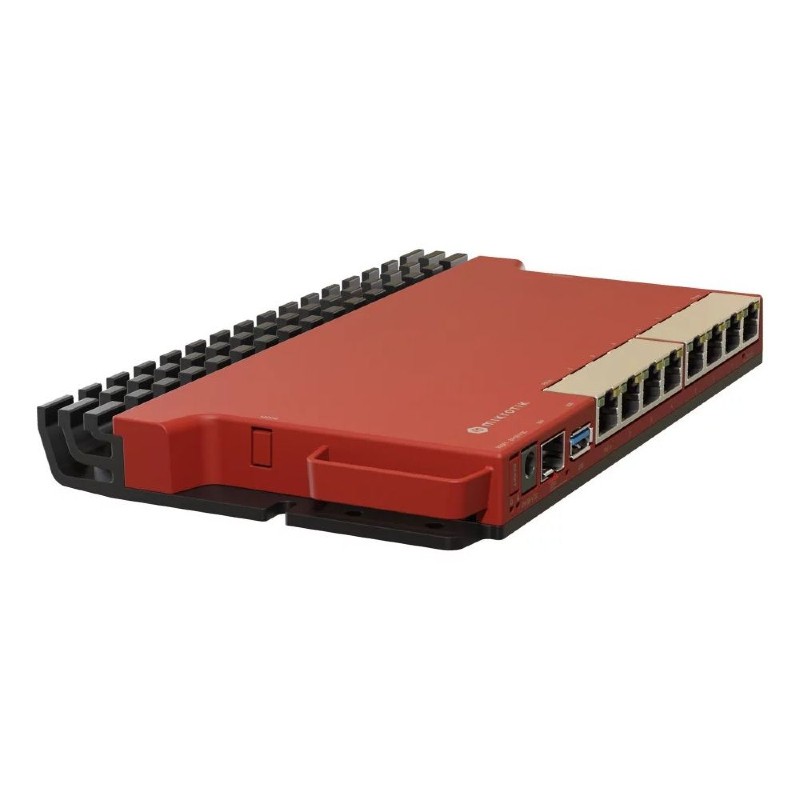

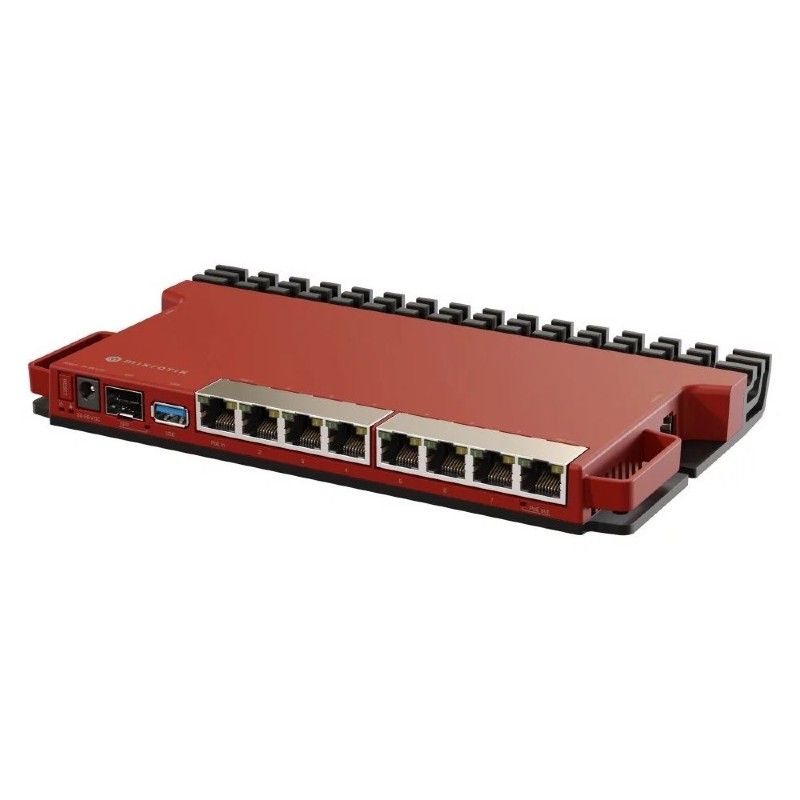

MikroTik RouterBOARD L009UiGS-RM
[3036][L009UiGS-RM]
Price: 94,31€
 Order or Qty  Price
 > 1000€  5+   93,37€
 > 2000€  10+   92,43€
 > 5000€  20+   91,48€
 > 10000€  40+   90,54€
Prices exclude VAT

MikroTik RouterBOARD L009UiGS-RM

In Stock: 3
Order Qty:
EAN:4752224008589

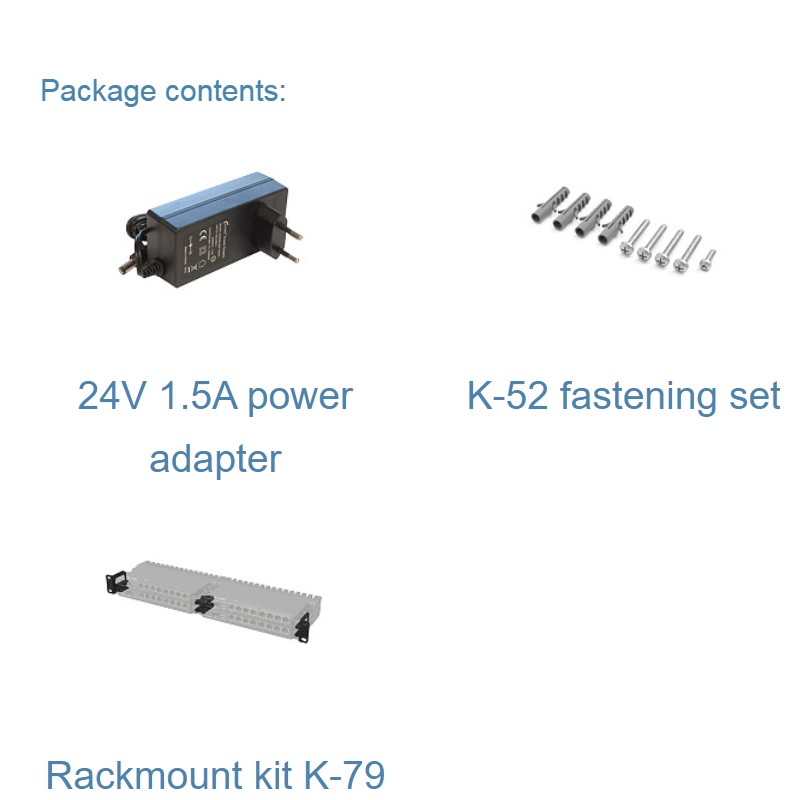

L009UiGS-RM - L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.

L009 is an upgraded version of the famous RB2011 router. The L009 model is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters.

Router L009UiGS-RM has better performance, more features, and some interesting quality-of-life improvements. A powerful dual-core ARM CPU offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features.

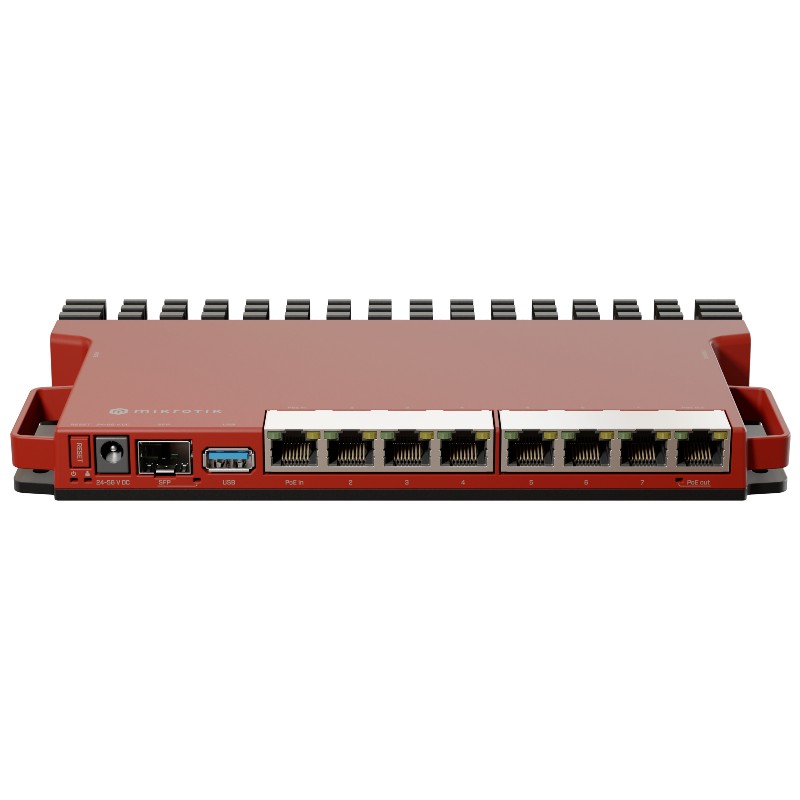

The router is equipped with 8 Gigabit Ethernet ports with PoE-in on the first port (it can be used to power the unit instead of the DC jack) and the PoE-out on the last port (works only if the router is powered by DC jack).

An SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. There is also a console port for quick direct-access configuration. A speedy Marvell Peridot Switch chip offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU.

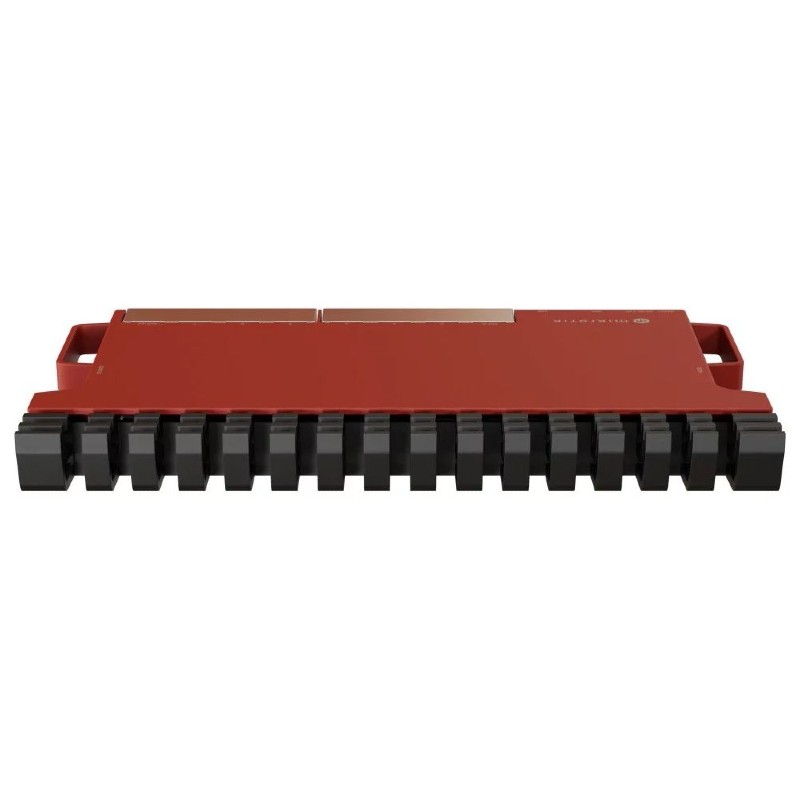

The enclosure of the router acts as a massive heat-sink, protecting your setups from overheating. Up to four of these routers can be installed in a single 1U rackmount space.

Specifications :
Product code L009UiGS-RM
Architecture ARM 64bit
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF (Approximately) 200.000 hours at 25°C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 24-56 V
Max power consumption 37 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V
PoE-out
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1 A
Ethernet
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1
Fiber
SFP ports 1 (2.5G supported)
Peripherals
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
