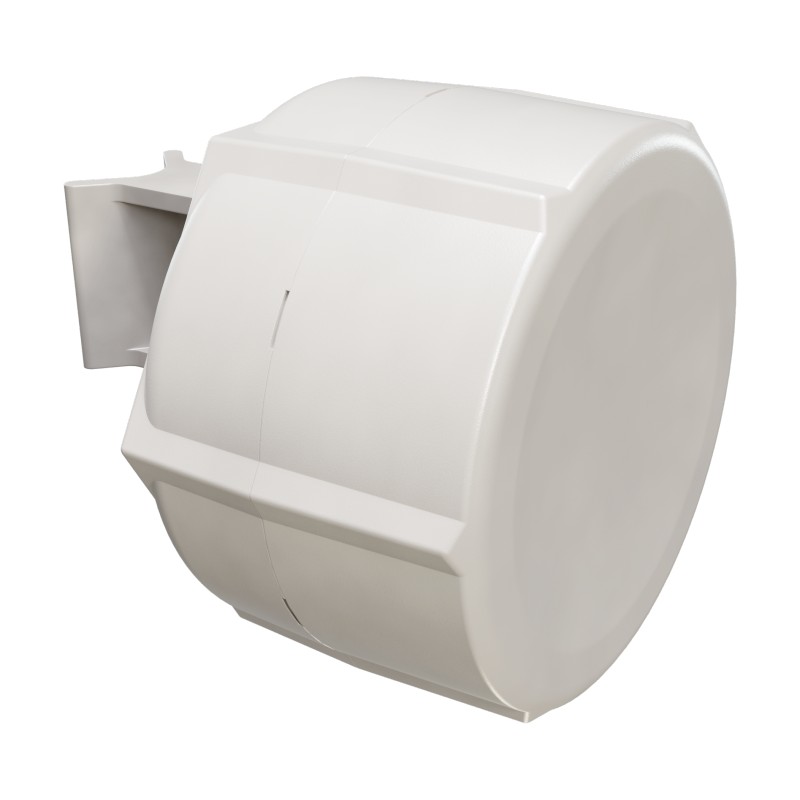

SXTR&FG621-EA - SXT LTE6 kit - Affordable mobile internet connectivity in remote areas. Lowest price ever due to the brand new, cost-effective LTE modem.
This LTE chip can provide reliable Internet connectivity for your building even where cell phones fail.

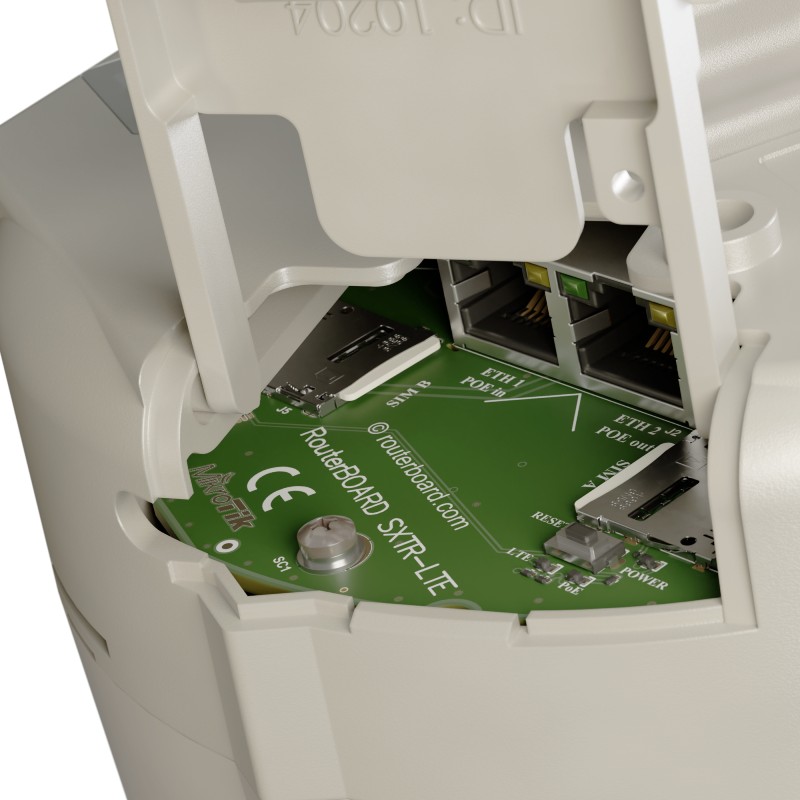

Included two Micro-SIM slots – for backup.
The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!

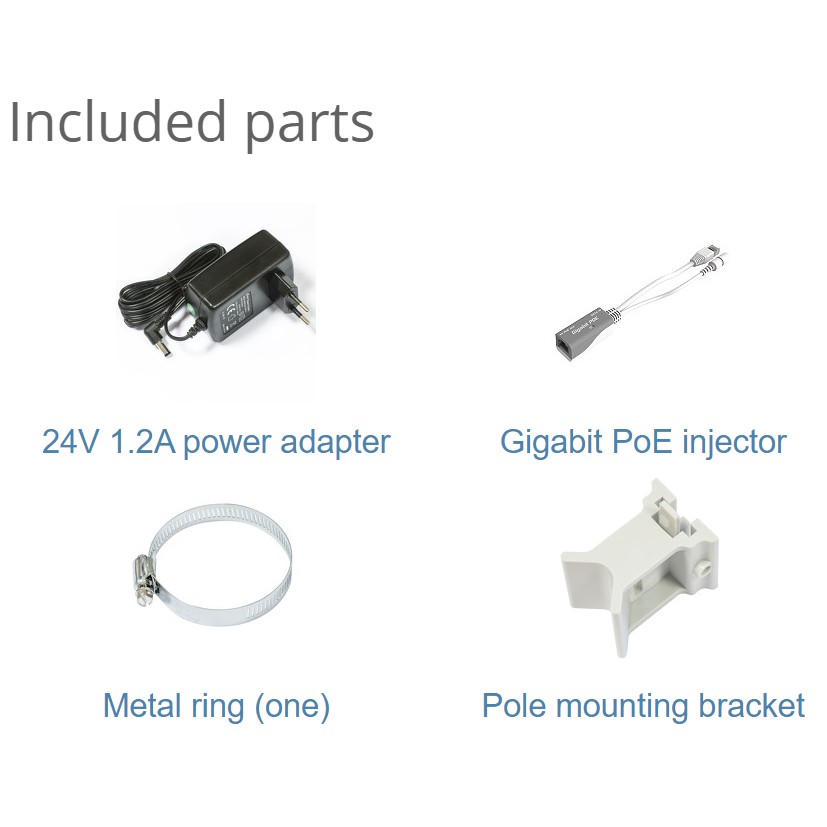

Shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.
|
Specifications: |
|
Product code |
SXTR&FG621-EA |
|
Architecture |
MIPSBE |
|
CPU |
QCA9531 |
|
CPU core count |
1 |
|
CPU nominal frequency |
650 MHz |
|
Switch chip model |
QCA9531 |
|
RouterOS license |
3 |
|
Operating System |
RouterOS v7 |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF (Approximately) |
200.000 hours at 25°C |
|
Tested ambient temperature |
-40°C to 60°C |
|
Powering: |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
22 W |
|
Max power consumption without attachments |
5 W |
|
Cooling type |
Passive |
|
PoE in |
802.3af/at |
|
PoE in input Voltage |
12-57 V |
|
PoE-out: |
|
PoE-out ports |
Ether2 |
|
PoE out |
Passive PoE up to 57V |
|
Max out per port output (input 18-30 V) |
600 mA |
|
Max out per port output (input 30-57 V) |
400 mA |
|
Max total out (A) |
600 mA |
|
Mobile: |
|
3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
|
3G bands |
3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 1 (2100MHz) |
|
LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
|
MIMO DL |
2x2 |
|
MIMO UL |
1x1 |
|
LTE FDD bands |
5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
1 (2100MHz) / 3 (1800MHz) / 28 (700MHz) |
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
|
TAC |
86335904 |
|
Ethernet: |
|
10/100 Ethernet ports |
2 |
|
Peripherals: |
|
Number of SIM slots |
2 Modem (Micro SIM) |
|
MiniPCI-e slots |
1 |
|
Other: |
|
Mode button |
Yes |
|
Certification & Approvals: |
|
Certification |
CE, EAC, ROHS |
|
IP |
54 |
