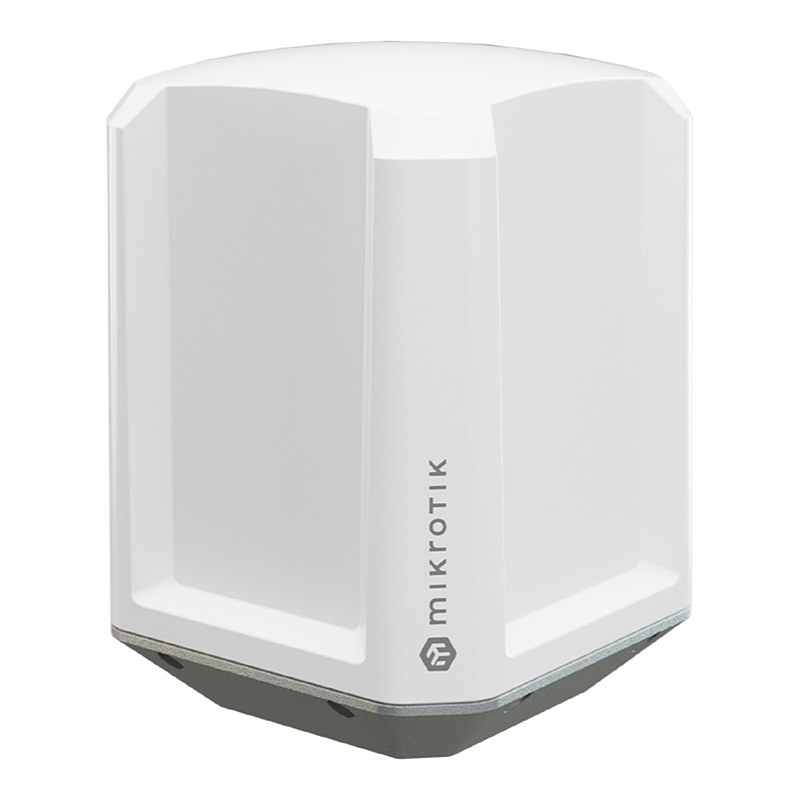

LAMP 5G R16 - Outdoor 5G Unit with Integrated Antennas
The MikroTik LAMP 5G R16 is an outdoor 5G unit with integrated omnidirectional antennas, (1) 1Gbps PoE-In port, (1) micro SIM slot and eSIM support.
The modem supports 5G, 4G and 3G networks with speeds of up to 5000Mbps downlink and 900Mbps uplink and uses 4x4 MIMO on the downlink.

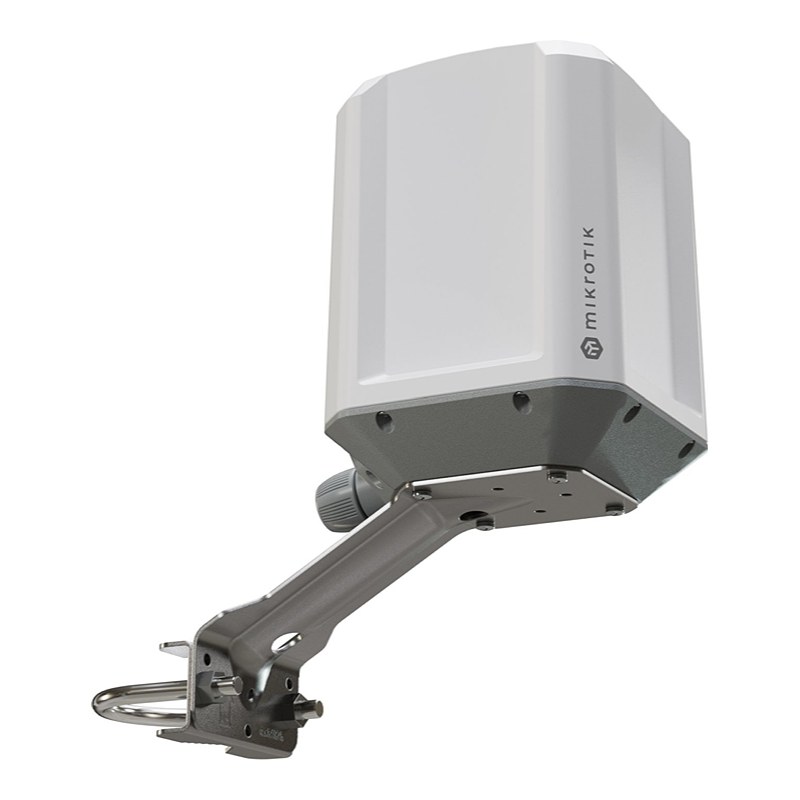

The IP67 rated enclosure, EN 60945 maritime certification and included stainless steel mounting bracket make it a reliable choice for demanding outdoor and marine deployments. Built-in GNSS support is suitable for fleet management, asset tracking and remote monitoring. (GNSS is not intended for navigation)
|
Specifications |
|
Wireless frequency |
5G (GSM), 3G (GSM), LTE |
|
Type of antenna |
Built-in |
|
Internal antennas |
4 |
|
Integrated 4G/LTE radio part |
Yes |
|
4G/LTE bands support |
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz
(20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz
(5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz
(43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz |
|
5G bands support |
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz,
(n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz
(n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz
(n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz |
|
Connectors and Interfaces |
|
LAN speed |
(1) 10/100/1000Mbps |
|
Gigabit LAN |
Yes |
|
SIM slot |
Yes |
|
SIM slots quantity |
1 |
|
GPS modul |
Yes |
|
Power |
|
Power over Ethernet |
802.3af, 802.3at, 12 .. 56V DC |
|
Power type |
PoE |
|
PoE type |
PoE-In (only) |
|
Max. power consumption [W] |
10 |
|
Physical characteristics |
|
Protection class |
IP67 |
|
Design |

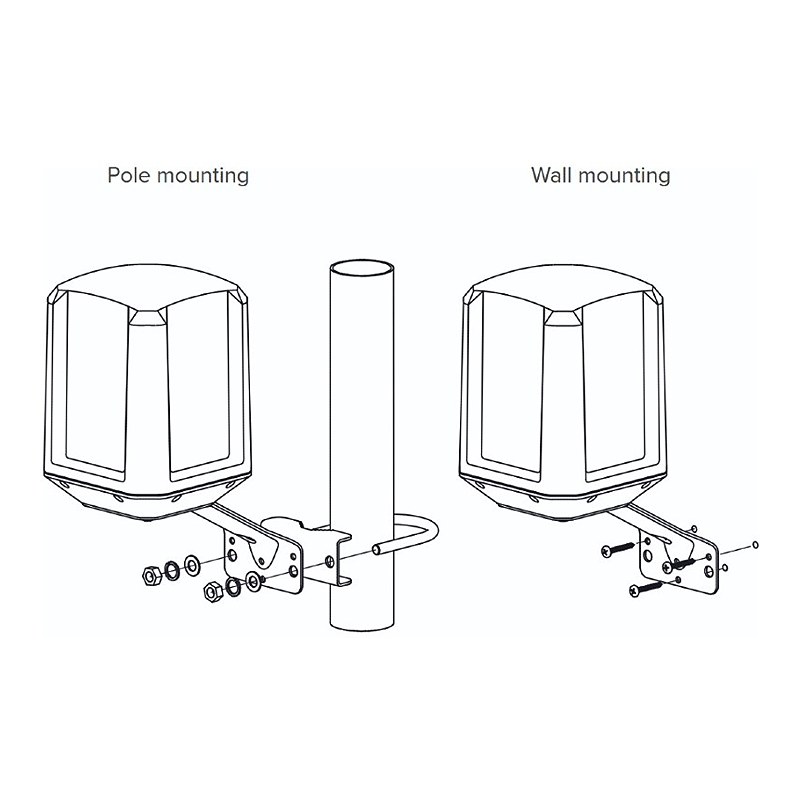

On the wall, On the mast |
|
Buttons |
Reset |
|
Operating temperature [°C] |
-40 up to 70 |
|
Width [mm] |
133 |
|
Height [mm] |
276 |
|
Depth [mm] |
267 |
|
Hardware |
|
CPU |
88F3720 |
|
CPU frequency [MHz] |
800 |
|
CPU cores |
2 |
|
Internal storage [MB] |
32 |
|
RAM [MB] |
512 |
|
Software |
|
Operating mode |
Cellular Modem |
|
Operating system |
RouterOS v7 - L3 |
|
IPv6 support |
Yes |
