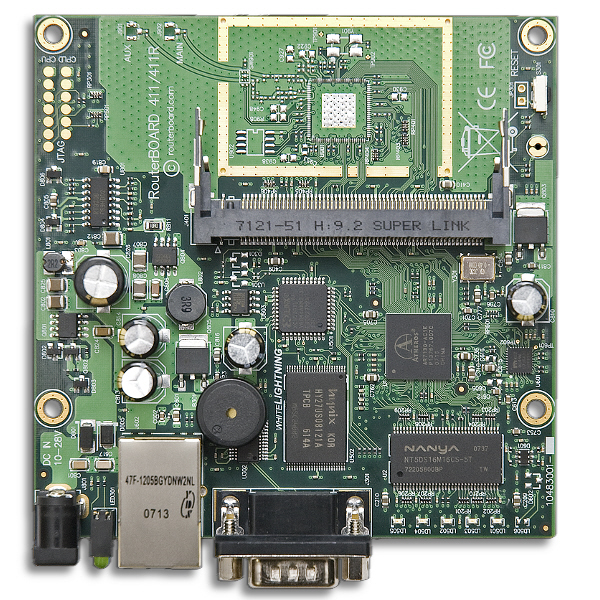

Much faster than it’s predecessors the RB411 is The CPE.
The heart of this device is the new Atheros CPU which makes this tiny device a quick one.
Tests show that it is up to three times more powerful than our previous model.
RB411 includes RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router/firewall or bandwidth manager.
One small device - with all the power of RouterOS.
|
RouterBOARD 411 Specifications : |
|
CPU |
Atheros AR7130 300MHz embedded processor |
|
Memory |
32MB SDRAM onboard memory chip |
|
Boot loader |
RouterBOOT, 1Mbit Flash chip |
|
Data storage |
64MB onboard NAND memory chip |
|
Ethernet ports |
One 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X |
|
MiniPCI slot |
One MiniPCI Type IIIA/IIIB slots |
|
Speaker |
Mini PC-Speaker |
|
Serial ports |
One DB9 RS232C asynchronous serial port |
|
LEDs |
Power, 1 LED pairs for MiniPCI slot, 1 user LED |
|
Speaker |
Mini Speaker present. Can be used for wireless alignment |
|
Power options |
Power over Ethernet:10..28V DC |
|
Power Consumption |
3-4W |
|
Temperature |
Operational: -20°C to +70°C (-4°F to 158°F) |
|
Humidity |
Operational: 70% relative humidity (non-condensing) |
|
Currently supported OS |
RouterOS 3.0 Level3 included |
