Sale / Open Box » AVP322ZP/22X
AVP322 CCTV Camera with Speed Dome, P.T.Z., 22X Zoom
[AVP322ZP/22X]
Price: 773,64€
(-50%): 386,82€
Prices exclude VAT

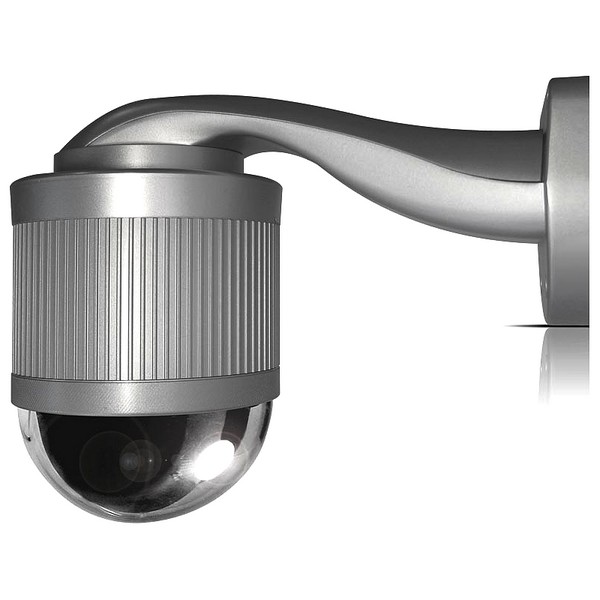

AVP322 CCTV Camera with Speed Dome, P.T.Z., 22X Zoom

In Stock: 4
Order Qty:

This PTZ camera series is a high-performance device for use in professional and demanding surveillance situation.

AVP322 is a PTZ camera with 22X zoom lens to help you widen your surveillance area. You can set the camera on patrol to several points regularly, or move to any place you like and zoom in up to 22X ratio to see things clearly.

General
Signal System NTSC or PAL
Pick-up Element 1/4" Sony Color Super HAD CCD image sensor
Number of Pixels 768(H)*494(V)<NTSC> / 752(H)*582(V)<PAL>
Resolution High Resolution
Min. Illumination 0.6 Lux / F1.6
S/N Ratio More than 48dB (AGC off)
Video Output 1.0 Vp-p. 75Ω
BLC On / Off
Gain Control Low, Medium & High / Off
Sharpness Auto / Low / Medium / High
White Balance Auto / Indoor 1 / Indoor 2 / Sun / Cloudy
* Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K
Camera Title 10 characters or symbols
Preset Points and Sequence Total 8 groups, 256 programmable preset points
* The sequence of all the preset points will follow the order of the minimal
panning route.
Auto Tracking Yes
Lens
Video Compression MPEG4 / MJPEG
Video Remote Control YES
Video Adjustment Brightness, Contrast, Saturation and Hue
Audio Compression uLaw , 128kbps
Audio Input External Microphone Input
Camera
Focal Length f3.9 mm ~ f85.9 mm
F-number F1.6 (Wide) ~ 3.7 (Tele)
Viewing Angle 4∘~ 60∘
Auto Electronic Shutter 1 / 60 (1/50) to 1 / 100,000 sec.
Auto Focus Always / PTZ / Z Only / P Only
Mechanism
Pan Range 360∘
Pan Speed 360∘/ 1 sec
* The pan speed can be adjusted according to the different pan speed mode.
Tilt Range 90∘
Tilt Speed 0∘~ 90∘under 1 sec
Zoom Ratio 22X optical zoom
Zoom Speed Approx. 7s (Tele ~ Wide)
Other
IP Rating IP66
Ambient Operating Temperature -20∘~ 40∘(-4°F ~ 104°F)
Storage Temperature 0∘~ 70∘
Power Source (±10%) DC12V- INCLUDED
Current Consumption 1.5 A (max)
Dimension (mm)** 145(Ø) x 184(H) (Bracket not included)
Gross Weight (g) Approx. 1.2 kg
Optional Bracket Wall-mounted - INCLUDED
Optional Device Keyboard controller
