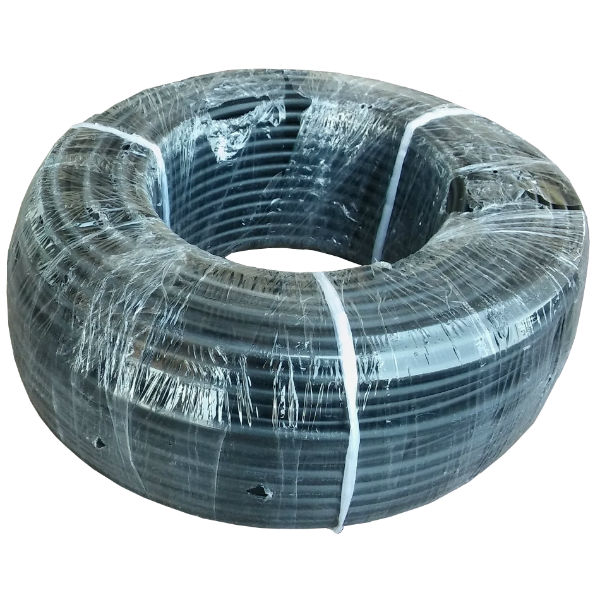

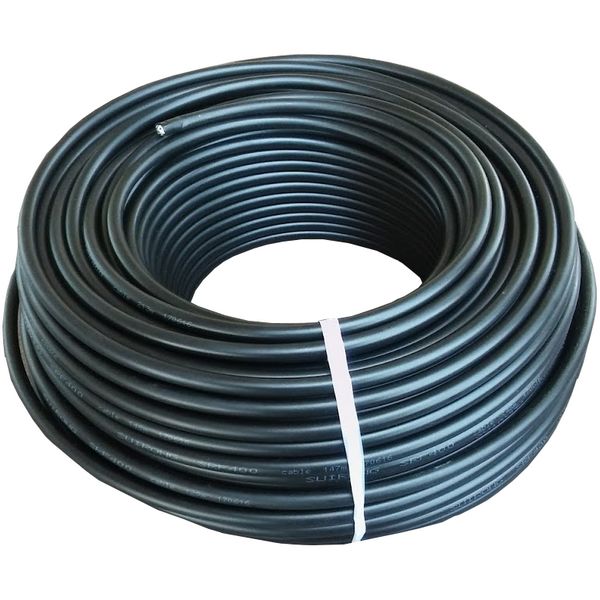

SRF-400, 100 meter Spool.
SRF-400 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.
It is constructed with a UV resistant polyethylene jacket for outdoor use.
This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.
Ehanced for usage from 2GHz up to 6GHz
|
Electrical Specifications : |
|
Cutoff Frequency |
16.2 GHz |
|
Velocity of Propagation |
85% |
|
Impedance |
50 ohms |
|
Capacitance |
23.9 pF/ft (78.4 pF/m) |
|
DC Resistance Inner Conductor |
1.39 ohms/1000ft (10.5 ohms/km) |
|
DC Resistance Outer Conductor |
1.65 ohms/1000ft (12.8 ohms/km) |
|
Peak Power |
16 kW |
|
Jack Spark |
8000 Volts RMS |
|
Cable Construction: |
|
Inner Conductor |
Solid Bare Copper (BC) / Aluminum 0.11 in (2.8 mm) |
|
Dielectric |
Foam Polyethylene 0.285 in (7.24 mm) |
|
Outer Conductor |
Aluminum Tape 0.291 in (7.39 mm) |
|
Capacitance |
23.9 pF/ft (78.4 pF/m) |
|
Braid |
34 AWG Tinned Copper, 90% coverage 0.32 in (8.13 mm) |
|
Jacket |
Black PVC/PE 0.405 in ±.008 in (10.29 mm ±0.2 mm) |
|
Mechanical and Environmental Specifications: |
|
Minimum Bend Radius |
1.0 in (25.4 mm) |
|
Tensile Strength |
160 lb (72.6 kg) |
|
Cable Weight |
0.068 lb/ft (1.0 kg/m) |
|
Operating Temperature Range |
-49°F to +149°F (-45°C to +65°C) |
