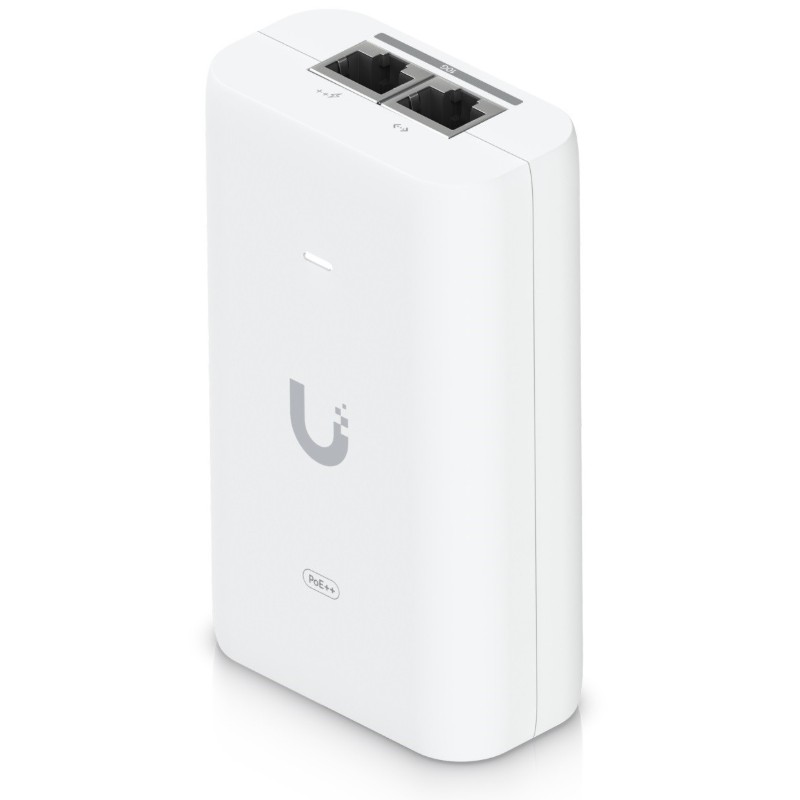

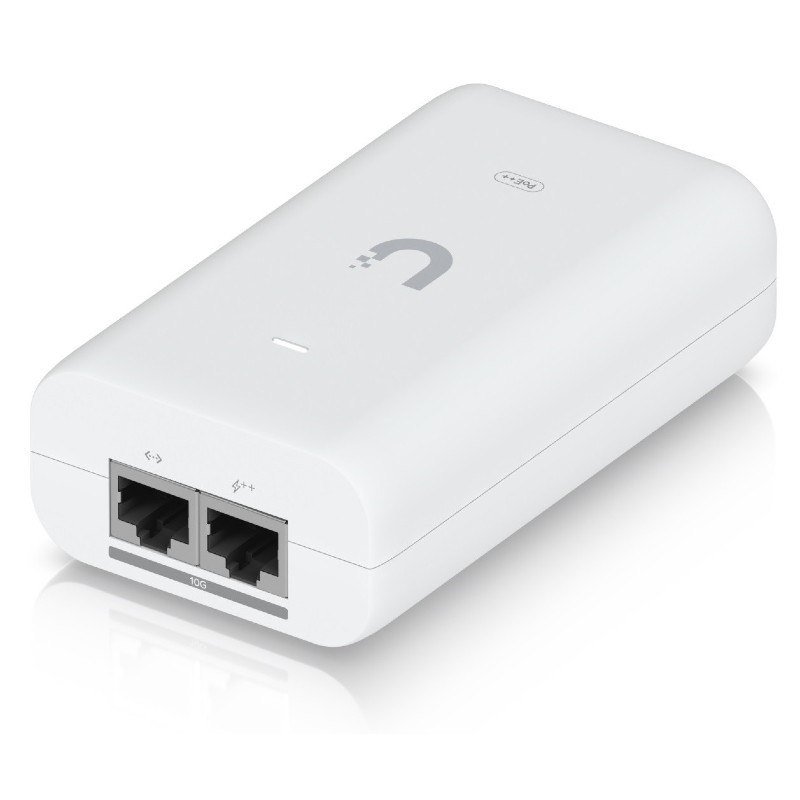

UACC-PoE++-10G - 10G PoE++ Adapter (60W)
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
 |
Delivers up to 60W of PoE++ |
 |
Surge, peak pulse, and overcurrent protection |
 |

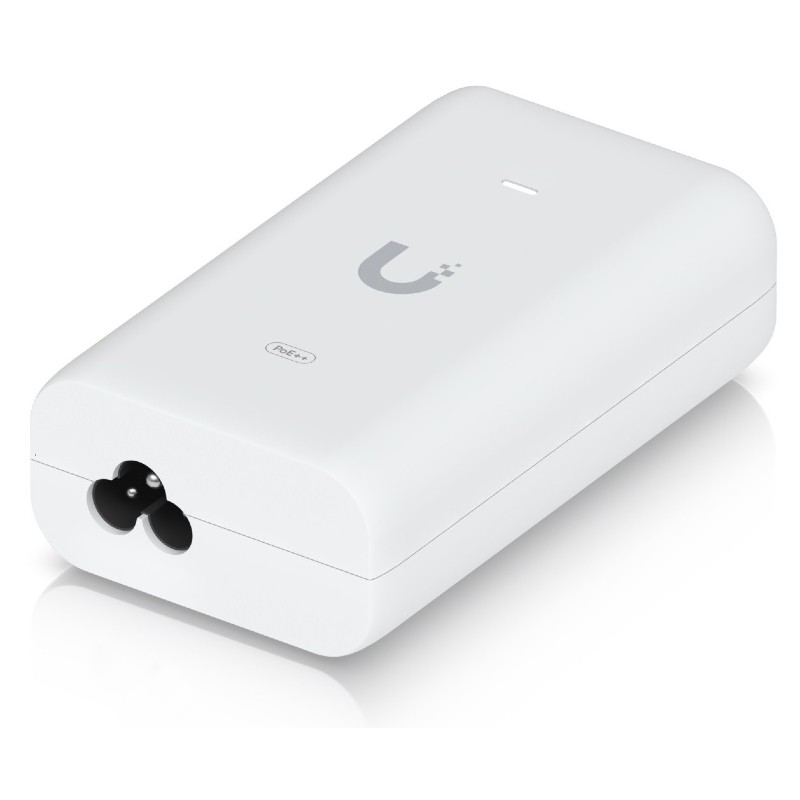

Contains RJ45 data input, AC cable with earth ground, and PoE++ output |
 |

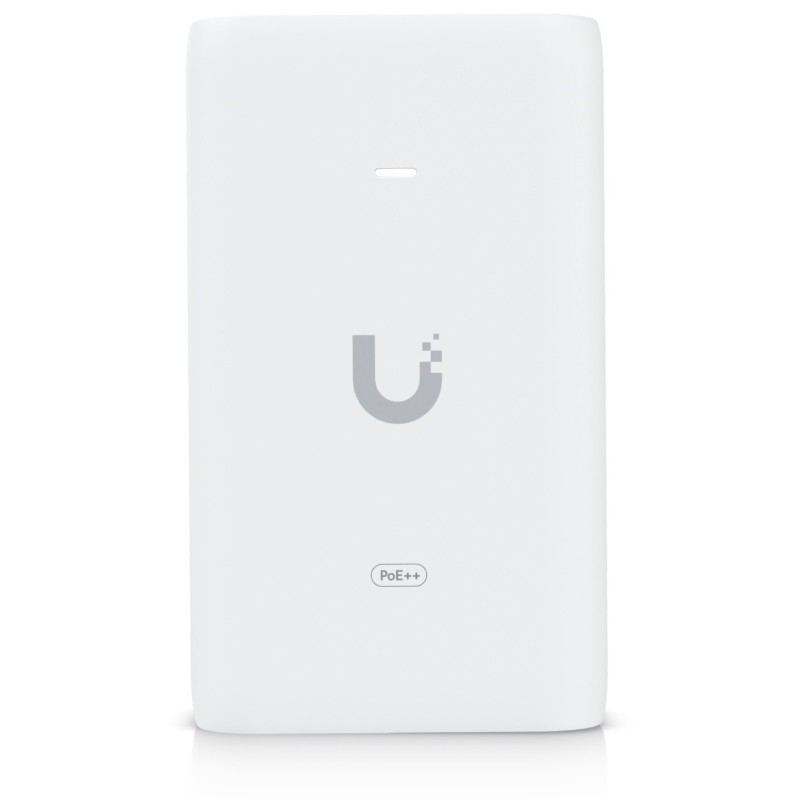

LED indicator for status monitoring |
Compatibility: E7, E7-Campus, E7-Audience, U7-Pro-XGS, U7-Pro-XG
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
4-Pair |
A + B |
1,2,4,5 |
3,6,7,8 |
|
Specifications: |
|
Dimensions |
106 x 63 x 34 mm |
|
Weight |
210 g (7.4 oz) |
|
Output Voltage |
54V DC @ 1.12A |
|
LAN Activity Indicator |
No |
|
Gigabit LAN Port |
Yes, up to 10 GbE |
|
Remote Reset Capability |
No |
|
Reset Button |
No |
|
Rated Voltage |
100—240V AC @ 50/60Hz |
|
Input Current |
1.5A max. |
|
Inrush Current |
<150A peak @ 230V AC |
|
Efficiency |
>88% |
|
Output Ripple |
1% max. |
|
Switching Frequency |
65 kHz |
|
Line Regulation |
≤ 2% |
|
Load Regulation |
≤ 5% |
|
Data In / PoE |
RJ45 shielded socket |
|
Surge Protection |
Difference and common mode |
|
Clamping Protection |
11V data, 60V power |
|
Max. Surge Discharge |
1500A (8/20 μs) power |
|
Peak Pulse Current |
36A (10/1000 μs) data |
|
Shunt Capacitance |
<5 pF data |
|
Response Time |
<1 ns |
|
Max. PoE+ Wattage per Port by PSE |
60W |
|
Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
|
Storage Temperature |
-30 to 70°C (-22 to 158° F) |
|
Ambient Operating Humidity |
10 to 95% noncondensing |
|
Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
