PoE » Passive Injector » EZ-POEPA05
Passive 10/100 PoE Injector cat5 - Black
[EZ-POEPA05]
Price: 0,60€
 Order or Qty  Price
 > 500€  5+   0,59€
 > 1000€  10+   0,58€
 > 2000€  20+   0,56€
 > 5000€  40+   0,55€
 > 10000€  100+   0,54€
Prices exclude VAT

Passive 10/100 PoE Injector cat5 - Black
In Stock: 87
Order Qty:

EZ-POEPA05

Features:

  • Cat5 Cable
  • RJ45 Input / Output connector
  • Input / Output common ground
  • Power / Data Injector
  • Ethernet switches expand to Wireless AP

Product Links:
Datasheet Datasheet

Input / Output Specifications :
DC Input Voltage 48V ± 5 %
DC Output Voltage 48V ± 5 %
Max Output Current 0.4A Max.
Over Current Protection None
General Specifications:
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 50gr

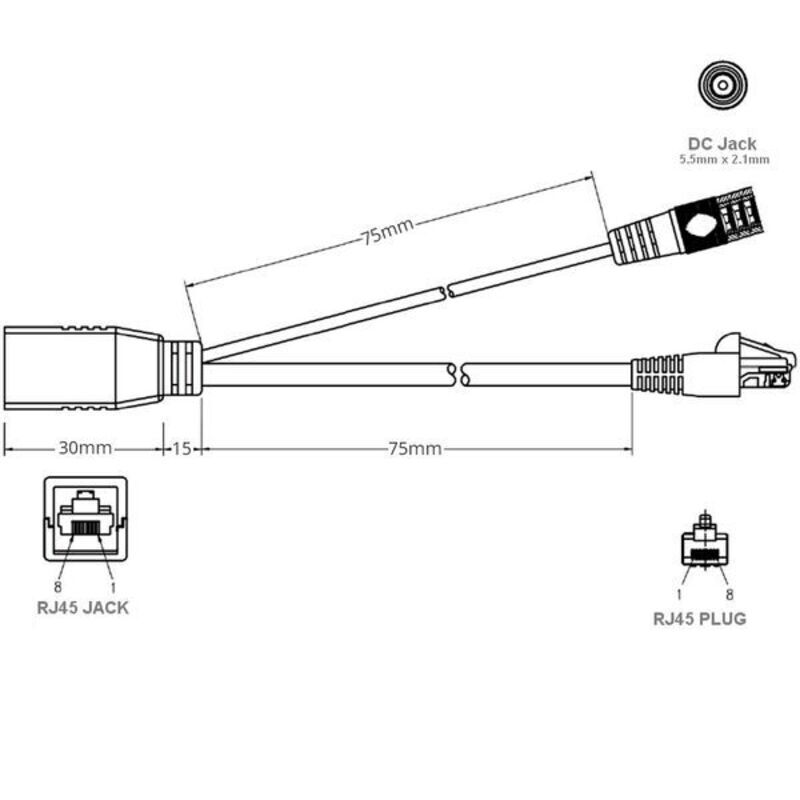

Dimensions 160x22x21mm

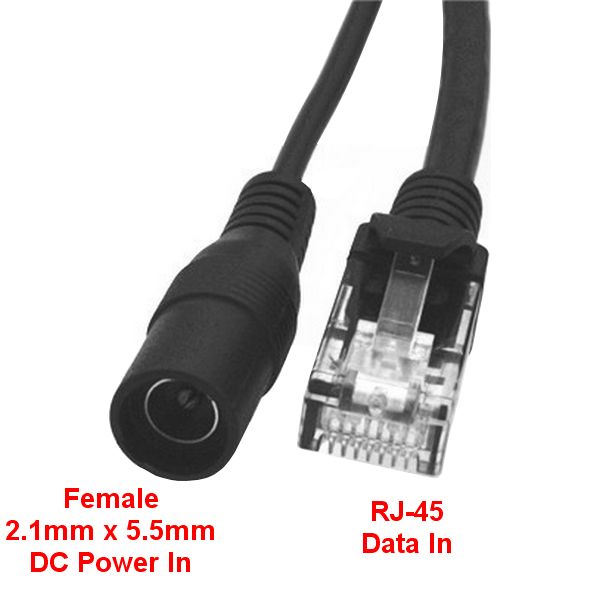

Input Pins

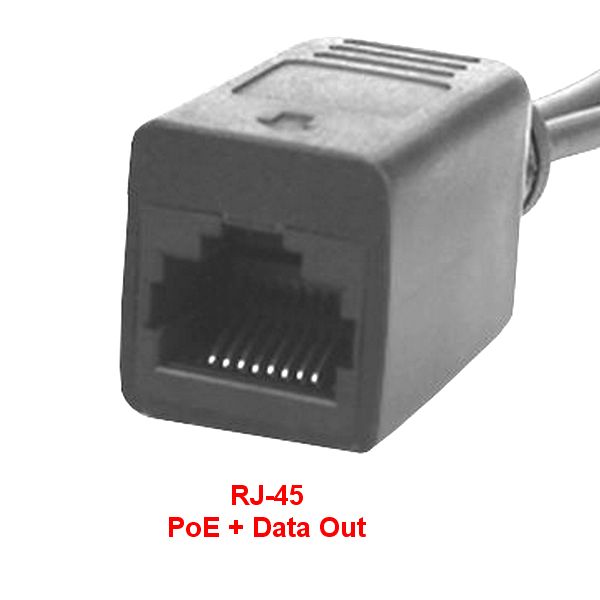

RJ-45 Plug		 Output Pins
RJ-45 Jack
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 N.C. V+ 4
5 N.C. V+ 5
6 Rx (-) Rx (-) 6
7 N.C. GND 7
8 N.C. GND 8

Package Contents:
1 x EZ-POEPA05
