Ubiquiti USW-Flex UniFi Switch 5-port
[2454][USW-Flex]
Price: 94,86€
 Order or Qty  Price
 > 500€  5+   93,91€
 > 1000€  10+   92,97€
 > 2000€  20+   92,02€
 > 5000€  40+   91,07€
 > 10000€  100+   90,12€
Prices exclude VAT

Ubiquiti USW-Flex UniFi Switch 5-port

In Stock: 2
Order Qty:
UPC:817882027595

USW-Flex UniFi Switch -  5-Port Layer 2 Gigabit Switch with PoE Support

The UniFi Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.

PoE Flexibility

The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

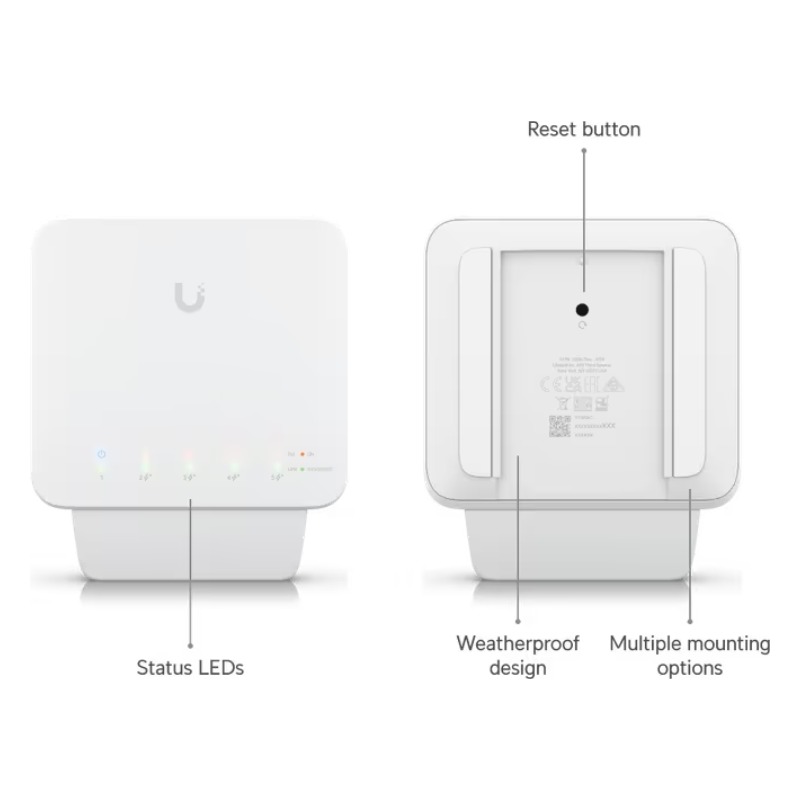

Versatile Mounting

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design

The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

Compatible Products

The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial, US-XG-6POE, USW-Pro-24-PoE or USW-Pro-48-PoE switches, which provide 60W of 802.3bt PoE++.

Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Specifications
Dimensions 122.5 x 107.1 x 28.0 mm
Weight 230 gr

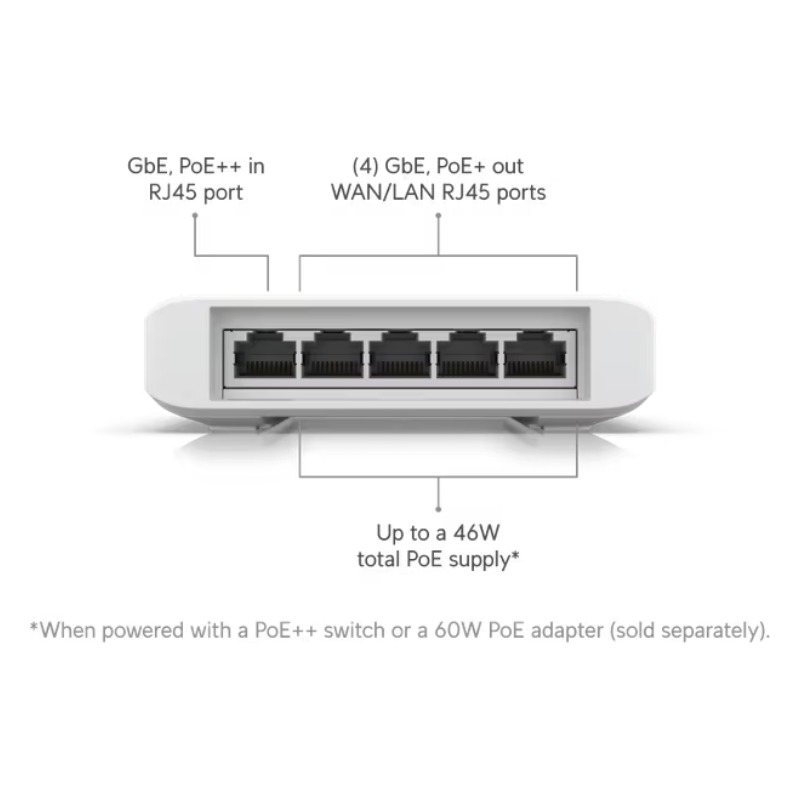

Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports
Management Interface Ethernet In-Band
Power Method (Port 1)
PoE Mode 1
PoE Mode 2
802.3af/at (Pins 1, 2+; 3, 6-)1
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2
50V/60W PoE Adapter3
PoE Out (Ports 2-5) 802.3af (Pins 1, 2+; 3, 6-)
Max Power Consumption (Excluding PoE Output) 5W
Max PoE+ Wattage Per Port 15.4W
Total PoE Power Budget
Powered by AF mode PSE
Powered by AT mode PSE
Powered by BT mode PSE
Powered by PoE Adapter
(Enabled in Controller)

8W
20W
46W
46W
Voltage Range
802.3af
802.3at/bt

44 - 57V
50 - 57V

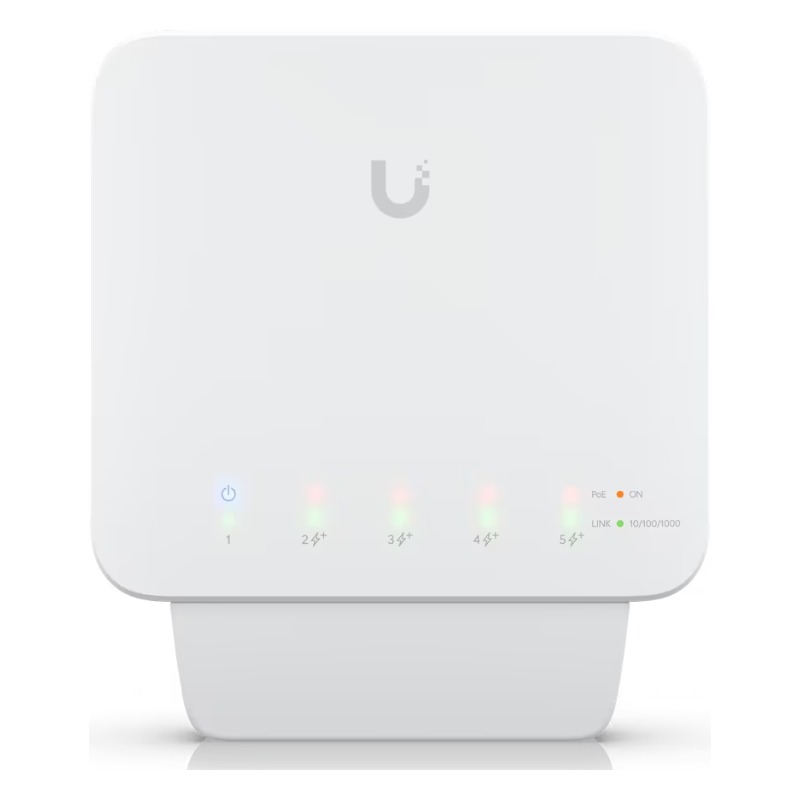

LEDs
System
RJ45 Data Ports

Status
PoE; Link/Speed/Activity
ESD/EMP Protection ± 16kV Air, ± 16kV Contact
Operating Temperature
46W PoE Output
25W PoE Output

-40 to 55°C
-40 to 65°C
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
